Petrol Engine Setting / Locking Kit For Fiat / Lancia 1.6 16V - Belt Drive

Engine Repair Tools

914-5544

← →

Description
Specification

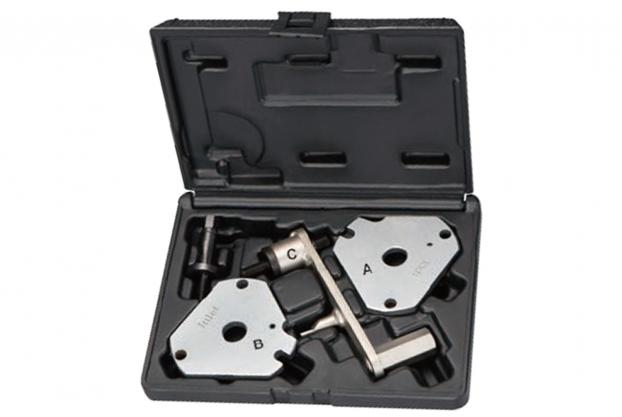

• The kit contains the inlet and the exhaust camshaft setting plates
and a timing belt tensioner adjuster.
• The TDC position in the twin cam engine is established using the
associated tool - TDC positioning tool and K1101 dial test indicator.

• A.) Camshaft Setting Plate (Inlet). OEM: 1 860 874 000.
• B.) Camshaft Setting Plate (Exhaust). OEM: 1 860 874 000.
• C.) Tensioner Adjuster. OEM: 1 860 876 000.

• Application (Model):---
Fiat: Brava/Bravo (95-02), Doblo/Cargo (02-06), Marea/Weekend (96-03),
Multipla (99-11), Palio Weekend (97-06), Siena (97-03), Stilo (01-08).
Lancia: Delta (96-99), Lybra (99-06).
• Engine Code:---
Fiat / Lancia: 178B3.000, 182A4.000, 182A6.000, 182B6.000.

• A.) Camshaft Setting Plate (Inlet). OEM: 1 860 874 000.
• B.) Camshaft Setting Plate (Exhaust). OEM: 1 860 874 000.
• C.) Tensioner Adjuster. OEM: 1 860 876 000.
