Ford/GM/Chrysler Repair Tools

924-5808

Setting / Locking Tool Set For Ford TDCi, Mazda D 1.4, 1.6, PSA HDi
← →
Qty :
Add to Inquiry List

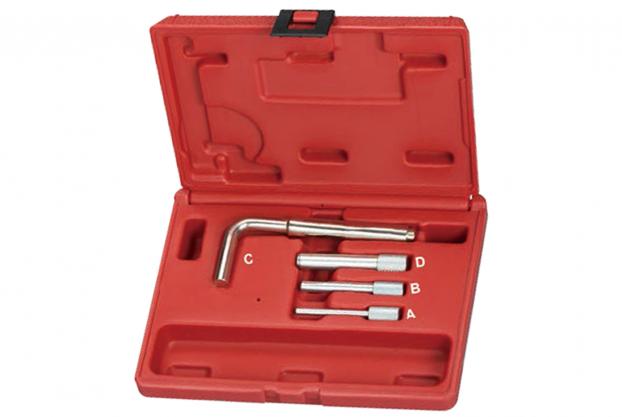

• A special 4 piece kit contains the necessary special pin required to lock
  the camshaft sprocket and the flywheel; to align the crankshaft fuel pump
  when checking the valve timing on 2.0 and 2.4 liter chain drive engines
  and/or replacing the timing belt on 1.4 liter engine.

• A.) Crankshaft Fuel Pump Alignment Pin.
        OEM: 21-260 / 21-251 / 0194A / 0178D / 303-732.
• B.) Camshaft Sprocket Locking Pin. OEM: 21-263 / 303-735 / 0194B / 49 JE 02 021.
• C.) Flywheel Locking Pin. OEM: 21-234 / 21-251.
• D.) Flywheel Locking Pin. OEM: 21-262 / 303-734 / 0194C / 49 JE 02 020.

• Application (Model):---
  Peugeot 107/1007 (05-08), 206 (01-08), 207 (06-08), 307 (01-08), 407 (04-08).
  Citroen C1 (05-08), C2 (03-08), C3 (02-08), C4/C5 (04-08), Xsara (02-06),
               Xsara Picasso (04-07), Berlingo (05-08).
  Ford Fiesta/Fusion 1.4 (02-08), Focus/Fusion 1.6 (04-08), Focus/C-Max 1.6 (03-07).
  Mazda 2 (02-07), 3 (04-08).

• Engine Code:---
  Citroen / Peugeot: DV4TD 8HT/8HW/8HX/8HZ, DV4TED4 8HV/8HY,
                                DV6TED4 9HY/9HZ, DV6ATED4 9HW/9HX.
  Ford: F6JA, F6JB, F6JC, G8DA, G8DB, HHDA, HHDB, HHJA, HHJB.
  Mazda: F6JA, Y6.

• A special 4 piece kit contains the necessary special pin required to lock
  the camshaft sprocket and the flywheel; to align the crankshaft fuel pump
  when checking the valve timing on 2.0 and 2.4 liter chain drive engines
  and/or replacing the timing belt on 1.4 liter engine.

• A.) Crankshaft Fuel Pump Alignment Pin.
        OEM: 21-260 / 21-251 / 0194A / 0178D / 303-732.
• B.) Camshaft Sprocket Locking Pin. OEM: 21-263 / 303-735 / 0194B / 49 JE 02 021.
• C.) Flywheel Locking Pin. OEM: 21-234 / 21-251.
• D.) Flywheel Locking Pin. OEM: 21-262 / 303-734 / 0194C / 49 JE 02 020.

• Application (Model):---
  Peugeot 107/1007 (05-08), 206 (01-08), 207 (06-08), 307 (01-08), 407 (04-08).
  Citroen C1 (05-08), C2 (03-08), C3 (02-08), C4/C5 (04-08), Xsara (02-06),
               Xsara Picasso (04-07), Berlingo (05-08).
  Ford Fiesta/Fusion 1.4 (02-08), Focus/Fusion 1.6 (04-08), Focus/C-Max 1.6 (03-07).
  Mazda 2 (02-07), 3 (04-08).

• Engine Code:---
  Citroen / Peugeot: DV4TD 8HT/8HW/8HX/8HZ, DV4TED4 8HV/8HY,
                                DV6TED4 9HY/9HZ, DV6ATED4 9HW/9HX.
  Ford: F6JA, F6JB, F6JC, G8DA, G8DB, HHDA, HHDB, HHJA, HHJB.
  Mazda: F6JA, Y6.
