• Fiat 1.3 JTD, Vauxhall / Opel 1.3 CDTi, Ford 1.3 TDCi, Suzuki Z13DT engine.
• This set of tool allows the user to check and adjust the camshaft timing, remove
  and replace the cam chain, and perform the completed engine rebuild whilst
  maintaining the correct.

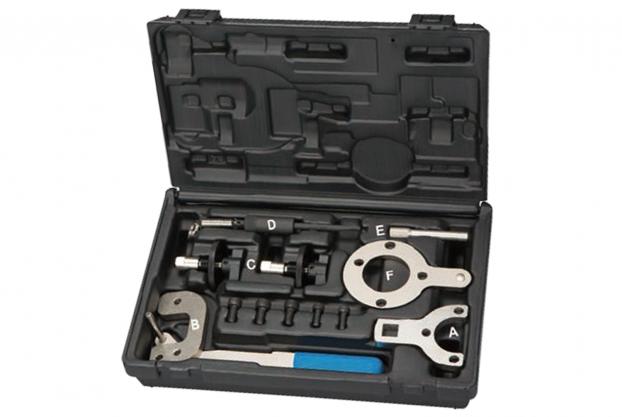

• A.) Crankshaft Pulley Flange Holding Wrench.
        OEM-Fiat: 1 871 000 200. OEM-Ford: 303-1469. OEM-Vauxhall: KM-662-C.
• B.) Timing Chain Tensioner Lever. OEM-Fiat: 1 870 900 400.
• C.) Camshaft Alignment Tool (2). OEM-Fiat: 1 871 000 900, 1 860 985 000.
        OEM-Ford: 303-1472. OEM-Vauxhall: EN 46781. OEM-Suzuki: 09917-68610.
• D.) Flywheel Pin with Spring. OEM-Vauxhall: EN 46785. OEM-Suzuki: 09912-38300.
• E.) 8 mm Crank Locking (Fiat). OEM-Fiat: 8 mm.
• F.) Crankshaft Timing Position Tool. OEM-Fiat: 1 870 900 300. OEM-Ford: 303-1468.

• Fiat Punto: Type: 1.3 JTD Multi-Jet. Engine Code: 188A9.000. Year: 2003-2007.
  Fiat Panda: Type: 1.3 JTD Multi. Engine Code: 169A.000, 188A8.000. Year: 2003-2009.
  Fiat Idea: Type: 1.3 JTD Multi. Engine Code: 199A3.000, 188A9.000. Year: 2004-2006.
  Fiat Doblo:  Type: 1.3 JTD Multi. Engine Code: 188A9.000. Year: 2004-2006.
  Ford KA: Type: 1.3 TDCi.
  Vauxhall / Opel Agila: Type: 1.3 CDTi. Engine Code: Z13DT. Year: 2003-2008.
  Corsa-C: Type: 1.3 CDTi. Engine Code: Year: Z13DT 2003-2007.
  Combo-C: Type: 1.3 CDTi. Engine Code: Z13DT. Year: 2003-2009.
  Corsa-D: Type: 1.3 CDTi. Engine Code: Z13DTH, Z13DTJ. Year: 2006-2009.
  Astra-H: Type: 1.3 CDTi. Engine Code: Z13DTH. Year: 2004-2009.
  Tigre-B: Type: 1.3 CDTi. Engine Code: Z13DT. Year: 2004-2009.
  Meriva: Type: 1.3 CDTi. Engine Code: Z13DT, Z13DTJ. Year: 2004-2009.
  Suzuki Ingis: Type: 1.3 CDTi. Engine Code: Z13DT. Year: 2003-2009.
  Suzuki Wagon: Type: 1.3 CDTi. Engine Code: Z13DT. Year: 2003-2009.
              Swift: Type: 1.3 CDTi. Engine Code: Z13DT. Year: 2003-2010.
