• For Citroen / Fiat / Ford / Jaguar / Land Rover / LDV / Peugeot & Fuel Charging & Control
  3.2L Duratorq - TDCi (Puma) Diesel - Fuel Pump

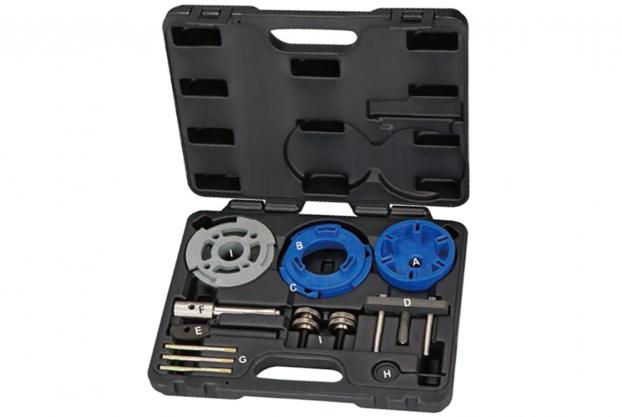

• A.) Engine Cover Aligner. OEM: 303-682.
• B.) Engine Cover / Crankshaft Seal Removal / Installation Tool. OEM: 303-679A.
• C.) High Pressure Pump Sprocket Retaining Tool. OEM: 303-1151.
• D.) H.P. Pump Removal Tool. OEM: 303-249.
• E.) Flywheel Locking Pin (Black). OEM: 303-675.
• F.) Flywheel Locking Pin (Silver). OEM: 303-698.
• G.) Locking Pin Set (3 x Pin). OEM: 6 mm Drill Bit.
• H.) Tensioner Locking Pin. OEM: 2 mm Pin.
• I.)  Fuel Injection Pump Sprocket Locking Tool. 303-1317.

• 914-5755 is from 914-5901 kit increases the application coverage
  to include 2.4 TDCi engine from 2006.
• A change in the diesel pump design on the engine prevents pump
  removal using the tool from 914-5901 kit.
• Utilize the existing timing pin, it includes the updated tool for the H.P. pump
  replacement procedure (H.P. pump sprocket retaining and removal tool),
  and also includes the additional tool that is required when carrying out the
  engine timing or the crankshaft seal replacement procedure.
• Tool is essential: it helps to ensure that front crankshaft seal is correctly
  aligned and will not fail prematurely.

• Application: Ford duratorq (puma) 2.0, 2.2, 2.4 & 3.2L diesel engines in:
  Citroen Relay (06-11), Jumper III.
  Fiat Ducato (06-11).
  Ford Mondeo (00-07), Transit (00-11).
  Jaguar X-Type (01-10).
  Land Rover Defender (07-11).
  LDV Convoy (02-06).
  Peugeot Boxer III (06-11).

• Engine Code: 2.0: ABFA, D3FA, D5BA, D6BA, F3FA, FIFA, FMBA, HJBA, HJBB,
                                  HJBC, HJBE, N7BA, N7BB.
  2.2 (Chain Drive H.P. Pump): QJBA(BG), QJBB, QJBC, QJBD.
  2.2 (Camshaft Drive H.P. Pump): 4HM, 4HU, 4HV, P8FA, P22DTE, QVFA, QWFA.
  2.4: 244DT, D0FA, D2FA, D2FB, D4FA, F4FA, FXFA, H9FA, H9FB, HEFA, HFFA,
          JXFA, PHFA, ZSD 424. 3.2: SAFA (Engine Timing Only).

• Fuel Injection Pump Sprocket Locking Tool:
  2.2L Duratorq-TDCi (Global Puma) Stage V Diesel:---
  (303) Engine: (3) Power Train: 2006.5 (04/2006-) : Transit.
  3.2L Duratorq-TDCI (Puma) Diesel:---
  (303) Engine: (3) Power Train: 2006.5 (04/2006-): Transit.
  2.2L Duratorq-TDCi (Puma) Diesel:---
  (303) Engine: (3) Power Train: 2012.00 (04/2011-): Ranger.
  3.2L Duratorq-TDCI (Puma) Diesel:---
  (303) Engine: (3) Power Train: 2012.00 (04/2011-): Ranger.
