Ford 1.6 VVT Engine Timing Kit

• The kit covers the timing belt replacement on Ford 1.6 duratec engine
  with the variable valve timing.
• The camshaft, the crankshaft and the flywheel pins are also suitable for
  many other petrol and diesel Ford engines. Use to lock the camshafts in
  the timed position when the engine repair or the rebuild requiring the cam
  pulley to be removed and timed.
• The kit covers later duratec petrol engine, it include revised design
  camshaft setting plate and tensioner pulley locking pin and also covers
  the completed range of Ford duratec engine 1.25 through 2.0 16v in the
  both belt and chain drive variant.
• For locking the camshaft in the position to allow the variable valve timing
  pulley to be removed.

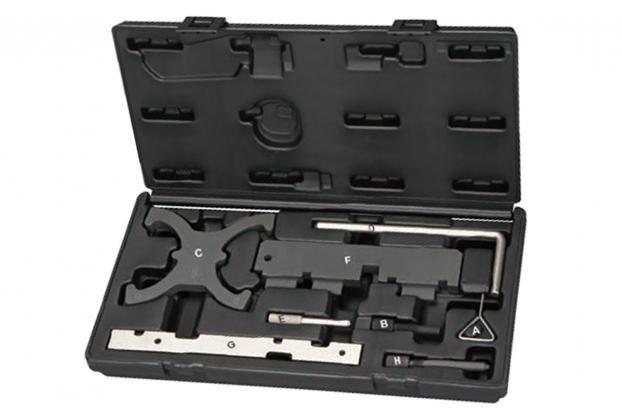

• A.) Tensioner Pulley Locking Pin. OEM: 303 1054.
• B.) Crankshaft Locking Tool. OEM: 303 748.
• C.) Camshaft Sprocket Locking Tool. OEM: 303 1097.
• D.) Flywheel Timing Pin. OEM: 303 1059.
• E.) Camshaft/Crankshaft Pin. OEM: 303 735.
• F.) Camshaft Setting Bar. OEM: 303 1552.
• G.) Camshaft Setting Plate.    OEM: 21-162B, 303-376, 303-376B.
• H.) Crank TDC Location Pin.  OEM: 21-163, 303-620.

• Application: Tensioner Pulley Locking Pin & Crankshaft Locking Tool
  and Camshaft Sprocket
  Locking Tool & Flywheel Timing Pin & Camshaft/Crankshaft Pin.
  Ford Focus/C Max 1.6 VCT-Ti (03-09). Engine Code: HXDA.

• Note: Camshaft Locking Tool 303 1097: Fit to the engine that ensure the
  arrow is facing upward, with the rectangle on the left and the circle on the right.

• This five piece set is the essential for replacing the cam belt on
  Ford Focus/C Max 1.6 Ti-VCT (03-09) with engine code: HXDA (2003-2007)
  plus 2.0 TDCi with engine code: G6DA, G6DB, G6DC 2003-2007.
• The set includes camshaft sprocket locking tool, tensioner pulley locking pin,
  flywheel timing pin, crankshaft locking pin, camshaft setting plate, and also
  requires Flywheel Locking Tool and adaptors.

• Camshaft Setting Bar:---
  Ford B-Max from 2012, C-Max from 2010, Fiesta from 2013, Focus from 2011,
  Galaxy from 2010, Grand C-MAX from 2010, Kuga from 2013, Mondeo from 2010,
  S-MAX from 2010, Tourneo Connect from 2013, Transit Connect 2013.
  Capacity: 1.6. Engine: Ecoboost Petrol (Sigma). Engine Code: JQMA, JQMB,
  JTMA, IQJA, JQDA, JQDB, JTDA, JTDB, IQDA, IQDB, PNDA, XTDA, MUDA,
  JTJA, JTWA, JTWB, JTBA, JTBB, KGBA, JQGA.

• Camshaft Setting Plate:---
  Ford 1.25, 1.4, 1.6, 1.7, 1.8 & 2.0 twin cam 16v duratec petrol engines
  (belt & chain) in Ford Fiesta/Courier, Fusion, Puma, Focus/C-Max, Mondeo,
  Cougar, S-Max, Galaxy, Tourneo Connect, Transit Connect.
