914-5501

Petrol Engine Setting / Locking Kit For Ford 1.6 Ti-VCT-Belt Drive

• The kit covers the timing belt replacement and the timing adjustment
  on Ford 1.6 Ti-VCT petrol engine.
• Include VCT setting plate, flywheel locking tools, crankshaft location pin
  and tensioner locking pin and also include the camshaft setting plate for
  the timing adjustment application. 1.6 Ti-VCT petrol engine was first
  fitted in Focus 2003 and had been since appeared in Fiesta and
  Mondeo models including FFV variant.

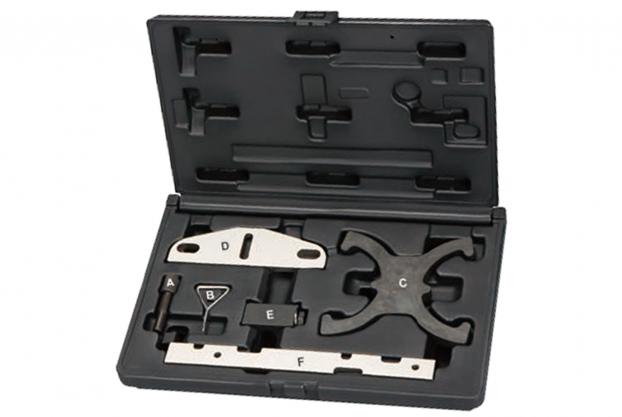

• A.) Crankshaft Location Pin. OEM: 303-748.
• B.) Tensioner Locking Pin. OEM: 303-1054.
• C.) VCT Setting Plate. OEM: 303-1097.
• D.) Flywheel Locking Tool - Base Plate OEM: 303-393, 303-393A.
• E.) Flywheel Locking Tool - Adaptor. OEM: 303-393-02.
• F.) Camshaft Setting Plate. OEM: 303-376B.

• Application: Ford C-MAX (07-12), Fiesta (08-12), Focus (04-12),
  Focus C-MAX (03-07), Grand C-MAX (10-12), Mondeo (07-10).
• Engine Code: 1.6 Ti-VCT: HXJA, HXJB, HXDA, IQDA, IQDB,
  PNBA, PNDA, RHBA, SIDA

• The kit covers the timing belt replacement and the timing adjustment
  on Ford 1.6 Ti-VCT petrol engine.
• Include VCT setting plate, flywheel locking tools, crankshaft location pin
  and tensioner locking pin and also include the camshaft setting plate for
  the timing adjustment application. 1.6 Ti-VCT petrol engine was first
  fitted in Focus 2003 and had been since appeared in Fiesta and
  Mondeo models including FFV variant.

• A.) Crankshaft Location Pin. OEM: 303-748.
• B.) Tensioner Locking Pin. OEM: 303-1054.
• C.) VCT Setting Plate. OEM: 303-1097.
• D.) Flywheel Locking Tool - Base Plate OEM: 303-393, 303-393A.
• E.) Flywheel Locking Tool - Adaptor. OEM: 303-393-02.
• F.) Camshaft Setting Plate. OEM: 303-376B.

• Application: Ford C-MAX (07-12), Fiesta (08-12), Focus (04-12),
  Focus C-MAX (03-07), Grand C-MAX (10-12), Mondeo (07-10).
• Engine Code: 1.6 Ti-VCT: HXJA, HXJB, HXDA, IQDA, IQDB,
  PNBA, PNDA, RHBA, SIDA
