914-5513

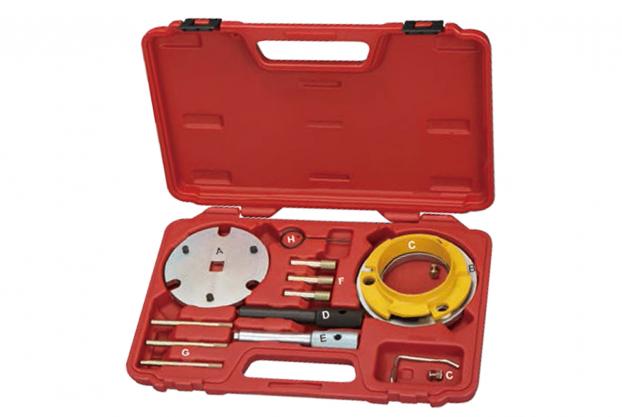

Diesel Engine Setting / Locking & Injection Pump Tool Kit 2.0D, 2.2D, 2.4D Duratorq - Chain Drive

• The comprehensive kit for the timing 2.0D, 2.2D & 2.4D duratorq chain drive diesel
  engines fit in Ford,, Citroen, Fiat, Jaguar, Land Rover, LDV and Peugeot vehicles.
• The kit includes sprocket retaining plates for both early and later types, and access
  cover removal plate for the injection pump removal/installation.

• A.) Access Cover Removal Plate. OEM-Ford: 303-679A (21-238).
• B.) Sprocket Retaining Plate (Early Type). OEM-Ford: 303-1151.
• C.) Sprocket Retaining Plate (Later Type). OEM-Ford: 303-1151,
• D.) Flywheel Locking Pin (with Common Rail).
        OEM-Ford: 303-698 (21-251). OEM-LDV: 303-698. OEM-Citroen / Peugeot: 0198.A.
        OEM-Fiat: 2.000.018.000. OEM-Jaguar: 303-698.
• E.) Flywheel Locking Pin (without Common Rail).
        OEM-Ford: 303-675 (21-234). OEM-LDV: LDV173.
• F.) Sprocket Retaining Plate Locating Pin (3 per kit).
• G.) Camshaft/Fuel Pump Sprocket Locking Pin (3 per kit):
        OEM-Citroen / Peugeot: 0198.B2. OEM-Fiat: 2.000.016.500. OEM-LDV: LDV167.
• H.) Tensioner Locking Pin. OEM-Citroen / Peugeot: 0198.J.

• Application (Model):---
  Ford Mondeo (00-07), Transit (00-13).
  Citroen Relay / Jumper III (06-13).
  Fiat Ducato (06-11).
  Jaguar X-Type (03-10).
  Land Rover Defender TD4 (06-11).
  LDV Convoy (02-06).
  Peugeot Boxer III (06-12).

• Engine Code:---
  2.0D TDCi: FIFA, FMBA, FMBB, HJBA, HJBB, HJBC, HJBE, N7BA, N7BB.
  2.0D TDDi: D5BA, D6BA.
  2.0D Di: ABFA, D3FA, F3FA.
  2.2D TDCi: BG, CYFA, CYFB, DRFA, DRFB, P8FA, P8FB, PGFA, PGFB, QJBA, QJBB,
                      QJBC, QJBD, QVFA, QWFA, SRFA, SRFB, SRFC, SRFD, SRFE, UHFA.
  2.2D TDCi Econetic: CYFC, DRFC. 2.4D Di: DOFA, D2FA, D2FB, D4FA, F4FA, FXFA.
  2.2D HDi/JTD: P22DTE (4HU), P22DTE (4HG), P22DTE (4HH), P22DTE (4HJ),
                            P22DTE (4HM), P22DTE (4HV).
  2.4D TD/TDi: ZSD 424. 2.4D TDCi: H9FA, H9FB, H9FD, JXFA, JXFC, PHFA, PHFC.
  2.4D TD4: 244DT.
