914-5397

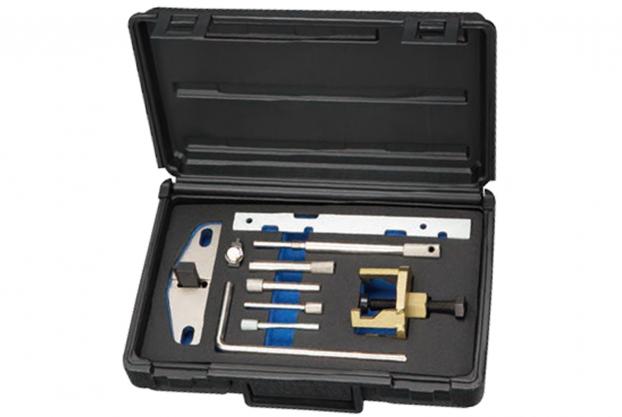

Diesel Engine Setting / Locking Kit Ford 1.4, 1.6TDCi, 1.8DT/TDCi/TDdi, 2.0TDCi - Belt Drive

• Comprehensive kit covers all current Ford 1.4, 1.6, 1.8 and new 2.0TDCi
  diesels giving extensive coverage of all the modern Ford belt drive Duratorq
  diesel engines.
• Includes camshaft, crankshaft and high pressure pump locking tools plus
  camshaft sprocket removal tool. Kit includes locking tag.
• 1.4 and 1.6TDCi Diesels are also in Citroen and Peugeot models designated as HDi.

• OEM Tools:---
  Ford 21 104, 21 162B, 21 168, 21 229, 303 193, 303 376, 303 376B, 303 393,
          303 393 01, 303 651.
  Mazda JE02021, JE02018, JE02020.

• Engine Codes:---
  1.4TDCi: DV4TD(8HT), DV4TD(8HX), DV4TD(8HZ), DV4TD(8HW),
                  DV4TED4(8HX), DVTED4(8HV), DV4TED4(8HY), DV4C(8HP),
                  DV4C(8HR), DV4TED(8HS), F6JA, F6JB, F6JC.
  1.6TDCi: DV6TED4(9HZ), DV6ATED4(9HX), DV6TED4(9HY),
                  DV6DTED(9HP), DV6C(9HR), DV6CATED(9HX), DV6C(9HL),
                  DV6TED(9HP), DV6ATED(9HY), DV6TED4(9HV), DV6TED4(9HX),
                  DV6C(9HD), DV6C(BHX), DV6C(BHZ), DV6(9HR), DV6BTED4(9HW),
                  DV6DTED(9HJ), DV6ETED(9HN), DV6TED4BU(9HS), DV6BTED4(9HT),
                  DV6BUTED4(9HT), DV6TED4B(9HV), DV6UTED4(9HX), DV6TED(9HD),
                  DV6UTED4(9HU), DV6D(9HP), DV6TED4(9HV), DV6C (9HD),
                  DV6TED4(9HW), DV6AT(9HX), DV6ATED(9HX), DV6CTED(9HC),
                  DV6AUTED4(9HX), DV6TED4B, DV6DTED(9HF), G8DA, G8DB, HHDA,
                  HHDB, HHJA, HHJB, MZ-CD, Y6. 1.8TDCi: BHPA, FFBA, FFDA, G6DA,
                  G6DB, G6DC, HCBP, HCPA, HCPB, KKDA, P7PA, P9PA, R2PA, R3PA,
                  RWPA, BHPA, FFBA, G6DA, G6DB, G6DC, HCBP, HCPA, HCPB, KKDA,
                  KKDB, P7PA, P9PA, R2PA, R3PA, RWPA. 1.8d: C9DC, RTN, RTQ.
  1.8TDi: C9DA/B, CPDC. 2.08TDCi: AZWA, G6DA, G6DB, G6DC, QXWA, QXWB.

• Application:---
  Citroen C1 (05-10), C2 (03-10), C3 I/II (02-10), C3 III (10-15), C3 Pluriel (04-10),
               C3 Picasso (09-12), DS3 (09-12), C4 (04-11), C4 II (11-15),
               C4 Picasso (06-12), C4 Grand Picasso (10-12), C5 II (04-08), C5 III (04-12),
               DS4 (11-12), DS5 (12-15), Xsara II (02-04), Xsara Picasso (04-10).
  Mazda 2 (02-15), 3 (09-14).
  Ford Courier (00-02), Fiesta (02-11), C-Max (03-10), Focus (98-11), Fusion (02-11),
          Galaxy (06-10), Mondeo (07-10), S-Max (06-10), Tourneo Connect (02-13),
          Transit Connect (02-13), Kuga (06-10).
  Peugeot 107 (05-10), 1007 (05-10), 206 (01-12), 206+ (09-13), 206 CC (05-07),
                 207 (06-13), 207 CC.
