• The combination kit of setting and locking tool is suitable for a wide
  range of Ford petrol and diesel engine and also suitable for the engine
  fitted in Land Rover, Mazda, PSA, Suzuki and Volvo vehicles.

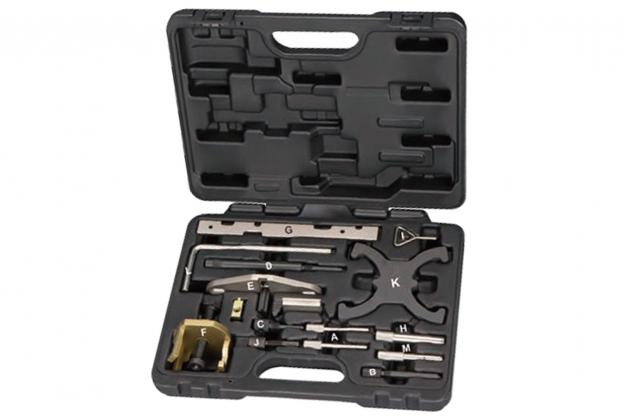

• The kit consists of the camshaft, crankshaft / flywheel and tensioner
  locking tool, plus camshaft sprocket remover.

• A.) Crankshaft / HP Pump Locking Pin (2 per kit). OEM: 303-732 (21-260).
• B.) Crankshaft Location Pin. OEM: 303-620 (21-163).
• C.) Crankshaft Location Pin. OEM: 303-507 (21-210).
• D.) Crankshaft Location Pin. OEM: 303-193 (21-104).
• E.) Flywheel Locking Tool-Base Plate. OEM: 303-393A (21-168).
• E.) Flywheel Locking Tool-Adaptor (29mm Black). OEM: 303-393A (21-168).
• E.) Flywheel Locking Tool-Adaptor (42mm Silver). OEM: 303-393-02.
• E.) Flywheel Locking Tool-Adaptor (11mm Gold).   OEM: 303-393-01.
• F.)  Camshaft Sprocket Remover. 303-651 (21-229).
• G.) Camshaft Setting Plate.  OEM: 303-376 (21-162B).
• H.) Flywheel Locking Pin.     OEM: 303-734 (21-262).
• I.)  Tensioner Locking Pin.    OEM: 303-1054.
• J.) Crankshaft Location Pin. OEM: 303-748.
• K.) VCT Setting Plate.        OEM: 303-1097.
• L.) Flywheel Locking Pin.   OEM: 303-1059.
• M.) Camshaft Locking Pin. 303-735 (21-263).

• Application (Model):---
  Ford C-MAX (07-12), Cougar (98-01), Courier (00-02), Escort (94-98),
  Fiesta (95-12), Focus (98-14), Focus C-MAX (03-07), Fusion (02-12),
  Galaxy (06-12), Grand C-MAX (10-12), Kuga (08-15), Maverick (01-07),
  Mondeo (93-12), Orion (94-94), Puma (97-02), S-MAX (06-12),
  Tourneo Connect (02-12), Transit (06-11), Transit Connect (02-12).

• Engine Code:---
  1.25 16v Belt: DHA, DHB, DHC, DHD, DHE, DHF, DHG, F8JA, F8JB,
                           FUJA, FUJB, M7JA, M7JB, SNJA, SNJB, STJA, STJB.
  1.4 16v Belt: ASDA, ASDB, FHA, FHB, FHD, FHF, FXDA, FXDB, FXDC,
                        FXDD, FXJA, FXJB, FXJC, SPJA, SPJC, RTJA, RTJB, UTJA.
  1.4D TDCi Belt: F6JA, F6JB, F6JC, F6JD, KVJA.
  1.6 16v Belt: FYDA, FYDB, FYDC, FYDD, FYDH, FYJA, FYJB, FYJC,
                        HWDA, HWDB, L1F, L1J, L1L, L1N, L1Q, L1T, L1V, L1W,
                        SHDA, SHDB, SHDC.
  1.6 Ti-VCT Belt: HXJA, HXJB, HXDA, IQDA, IQDB, PNBA, PNDA, RHBA, SIDA.
  1.5D TDCi Belt: UGJC, ENUG, UGCA.
  1.6 16v Ecoboost Belt: JQDA, JQDB, JQMA, JTBA, JTDA, JTDB, JTWA,
                                          JTWB, MUDA.
  1.6D TDCi Belt: G8DA, G8DB, G8DD, GPDA, HHDA, HHDB, HHJA, HHJB,
                              HHJC, HHJD, HHJE, HHJF, TZJA, TZJB.
  1.6D TDCi Econetic Belt: HHJD, G8DD, GPDA.
  1.8 16v Chain: CDBB, CGBA, CGBB, CHBA, CHBB, CSDA, CSDB, Q7DA,
                            QQDA, QQDB, QQDC.
  1.8 16v Belt: EYDB, EYDC, EYDD, EYDE, EYDF, EYDG, EYDI, EYDJ,
                        EYPA, EYPC, RKA, RKB, RKC, RKF, RKH, RKJ, RKK, EYDL.
  1.8D TDCi Belt: BHPA, F9DA, F9DB, FFBA, FFDA, FFWA, HCPA, HCPB,
                              KHBA, KKDA, KKDB, P7PA, P9PA, P9PB, QYBA, QYWA,
                              R2PA, R3PA, RWPA, RWPC, TYWA.
  1.8D TDDi Belt: BHDA, BHDB, C9DA, C9DB, C9DC, BHPA.
  1.8D TCi Belt: RFN.
  1.8D Turbo Belt: C9DC, RTN, RTQ, RTP.
  2.0 16v Belt: ALDA, EDBA, EDBB, EDBC, EDBD, EDDB, EDDC, EDDD,
                        EDDF, HMDA, NGA, NGB, NGC, NGD, YF
  2.0 16v Chain: AOBA, AOBC, AODA, AODB, AODE, AOWA, AOWB, CJBA,
                            CJBB, N4JB, SYDA, TBBA, TBBB, TBWA, TBWB.
  2.0D TDCi Belt: AZBA, AZBC, AZWA,AZWC, G6DA, G6DB, G6DC, G6DD,
                             G6DE, G6DF, G6DG, IXDA, KLBA, LPBA, QXBA, QXBB,
                             QXWA, QXWB, TXBA, TXDA, TXDB, TXWA, TYBA, TYDA,
                             TYWA, UFBA, UFDA, UFDB, UFWA, UKBA, UKDA, UKDB, UKWA.
  2.2D TDCi Belt: KNBA, Q4BA. 2.3
  16v Chain: GZFA, GZFB, GZFC, SEBA, SEWA, GZ.
