• For Land Rover / Jaguar / Citroen / Peugeot 2.7D, 3.0D -
  TDV6 / SDV6 / TDVi / HDi - Belt Drive

• The kit of the engine setting/locking tool is for the timing belt replacement
  on 2.7 and 3.0 V6 diesel engines fitted in Land Rover(TDV6), Jaguar,
  Citroen and Peugeot vehicles.

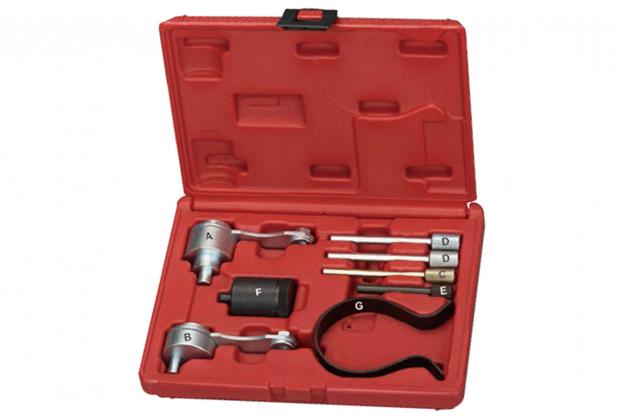

• The kit contains camshaft timing checking pin, flywheel locking tools,
  coolant pump locking pin and timing belt retaining clip.

• A.) Flywheel Locking Tool (Auto).      OEM-Land Rover / Jaguar: 303-1117.
• B.) Flywheel Locking Tool (Manual). OEM-Land Rover / Jaguar: 303-1116.
• C.) Camshaft Timing Checking Pin - Gold. OEM-Land Rover / Jaguar: 303-1132.
• D.) Camshaft Locking Pin - Silver (2 per kit).
        OEM-Land Rover / Jaguar: 303-1126. OEM-Citroen / Peugeot: 0195-H.
• E.) Coolant Pump Locking Pin (PSA). OEM-Citroen / Peugeot: 0195-C.
• F.)  Flywheel Locking Tool (PSA). OEM-Citroen / Peugeot: 0195-K.
• G.) Timing Belt Retaining Clip. OEM-Citroen / Peugeot: 0188-K.

• Application: Land Rover, Jaguar & PSA (Citroen/Peugeot) 2.7/V6 (TDV6)
  quad cam diesel engines in:
  Citroen: C5 III (07-09), C6 (05-09).
  Jaguar: S-Type (04-08), XF (08-12), XJ (10-12), XJ6 (05-10).
  Land Rover: Discovery 3 (04-09), Discovery 4 (09-12), Range Rover Sport (05-09).
  Peugeot: 407 (04-09), 407 Coupe (06-09), 607 (04-11).

• Engine Code: 2.7D/TDV6/TDVi: 276DT.      2.7D HDi: DT17BTED4 (UHZ).
                          3.0D HDi: D20CTED4 (X8Z). 3.0D SDV6/TDV6: 306DT, AJ-V6D.
