• For Vauxhall / Opel / Suzuki 1.0/1.2/1.4 - Chain Drive

• The kit includes the locking tool for 1.0, 1.2, 1.4 Ecotec/Ecoflex (code X and Z)
  chain engines, and also include the timing disc position gauge for the timing
  sensor on the inlet camshaft.

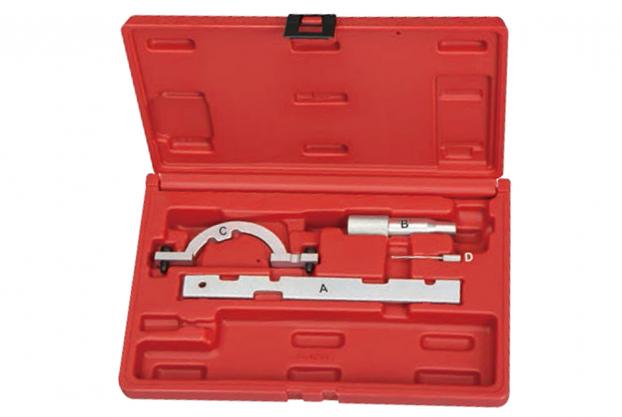

• A.) Camshaft Setting Plate. OEM-Vauxhall / Opel: KM-953. OEM-Suzuki: 09919-58310.
• B.) Crankshaft Locking Pin. OEM-Vauxhall / Opel: KM-952. OEM-Suzuki: 09912-38310.
• C.) Camshaft Sensor Alignment Fixture.
        OEM-Vauxhall / Opel: KM-954. OEM-Suzuki: 09919-08310.
• D Chain Tensioner Locking Pin KM-955 09919-58320.

• Application (Model):---
  Vauxhall / Opel: Agila (00-08), Astra - G (98-06), Astra - H (04-11), Combo (04-12),
                            Corsa - B (97-00), Corsa - C (00-07), Corsa - D (06-12),
                            Meriva - A (04-10), Tigra - B (04-10).
  Suzuki: Wagon R(05-08).

• Engine Code:---
  1.0 12v/Ecoflex: X10XE, Z10XE, Z14XEP.
  1.2 16v: X12XE, Z12XE, Z14XEL.
  1.4/Ecoflex: Z14XEL, Z12XEP.
