Diesel Engine Timing Tool Kit For Vauxhall / Opel 1.6 / 1.7D & Isuzu

• The kit covers a wide range of GM diesel engine from 1.5TD in Corsa
  to 3.1TD in Monterey.
• The kit includes cam setting plate and DTI for Opel 1.6 and 1.7D engines,
  flywheel TDC setting tool for X17DTL (-96), the superseding locking pin
  for 97- model, and injection pump locking pin introduced for 98 - engine,
  and also includes the locking bolts for Isuzu diesel engine.

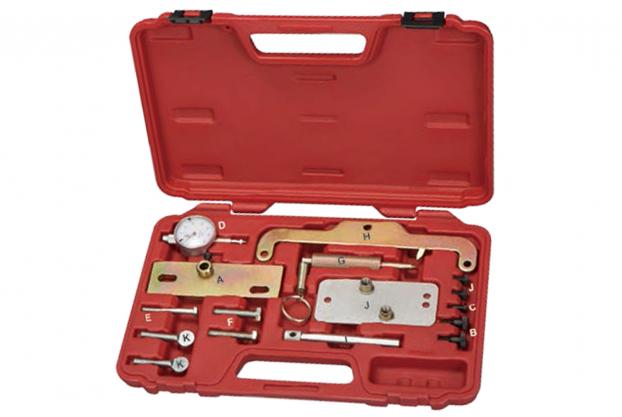

• A.) Cam Setting Plate Thumb Screw.
  B.) Shoulder Lock Screw (2).
  C.) DTI Special Foot.
  D.) Dial Gauge Indicator (DTI). OEM: VAS 6079.
  E.) M6 Locking Bolt. F.) M8 Locking Bolt (2).
  G.) Flywheel Locking Pin. OEM: KM 951.
  H.) Flywheel TDC Setting Tool. OEM: KM 851.
  I.)  Injection Pump Locking Pin. OEM: 23-029.
  J.) Camshaft Locking Tool. OEM KM 661-2.
  K.) M8 x 30 mm Thumb Screws. OEM: KM 661.

• Application:---
  The engine timing and the timing belt renewal on Vauxhall/Opel 1.6/1.7D
  diesel engines and Isuzu 1.5/1.7/2.0/2.2/2.3/2.4/2.5/3.0/3.1 engine.

• Model:---
  Opel: Astra, Cavalies, Vectra - A (87-00), Isuzu, Nova, Corsa/Combo, Stra,
            Cavalier, Vectra, Frontera, Monterey, Midi, Brava (88-04).
  Isuzu: 4EC1, 4EE1, 4JB1, 4XJ1, 4JA1, 4JG1, 4FC1, 4FD1, 4FG1, Z17DT,

• Engine: Opel Diesel Engine Astra/Belmont/Kadett-E 1.6/1.7D Astravan,
  Astramax 1.6/1.7D Cavalier/Ascona-C/Vectra-A 1.6/1.7D:
  16DA, 17D Engines (86-96). Dial Gauge Indicator (DTI).
• Engine: Astra-F 1.7D/TD, Astra-G 1.7TD Astravan 1.7D Cavalier/Vectra-A
  1.7D: 17DR, X17DTL Engines (92-00). Dial Gauge Indicator (DTI) plus Flywheel
  TDC Setting Tool(X17DTL-96) or Flywheel Locking Pin (X17DTL 97-) and Injection
  Pump Locking Pin (X17DTL 98-).
• Engine: Isuzu Diesel Engine Nova 1.5TD Corsa-A, Corsa-B 1.5TD/1.7D/1.7TD,
  Corsavan/Combo 1.7D Astra-F 1.7TD, Cavalier/Vectra-A 1.7TD, Vectra-B 1.7TD:
  4EC1, 4EE1 TC4EE1 Engines (88-00). M6 Locking Bolt & M8 Locking Bolt (2).
• Engine: Frontera 2.8TD, Monterey 3.0TD/3.1TD, Brava 2.3D/2.5D/TD: 4JB1-TC,
  4JX1, 4JG2T/C, 4JA1, 4JA1T (88-). M8 Locking Bolt (2).
