• For Vauxhall / Opel / Fiat 2.2 16V - Chain Drive

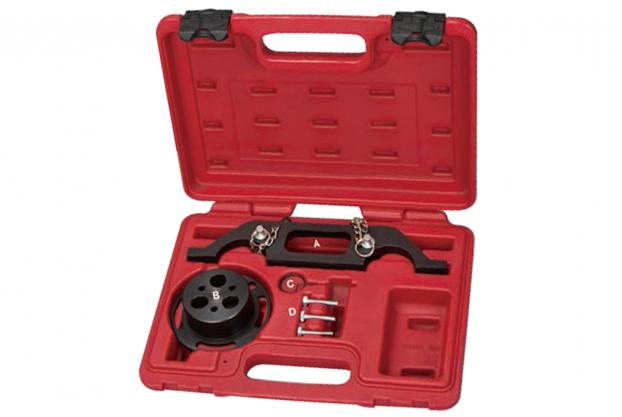

• The kit consists of camshaft locking tool, tensioner locking pin and
  coolant pump sprocket retainer for 2.2 chain drive Vauxhall / Opel
  engine, the engine also fits in Fiat model.
• The essential tool is for the engine timing when carrying out the
  cylinder head work and the coolant pump replacement.

• A.) Camshaft Locking Tool.
        OEM-Vauxhall / Opel: KM 6148. OEM-Fiat: 2.000.000.900.
• B.) Coolant Pump Sprocket Retainer.
        OEM-Vauxhall / Opel: KM6148, KM6077.
• C.) Tensioner Locking Pin. OEM-Vauxhall / Opel: KM6077.
• D.) M6 x 30 Set Screw (3 per kit).

• Application (Model):---
  Vauxhall / Opel: Astra - G (00-06), Astra - H (06-11), Signum (03-08),
                            Vectra - B (00-02), Vectra - C (02-08), VX220/Speedster (00-06),
                            Zafira - A (00-05), Zafira - B (05-12).
  Fiat: Croma (05-09).
• Engine Code: 2.2 16v (Vauxhall / Opel): Z22SE, Z22YH. 2.2 16v (Fiat): 194A1.000.
