European Cars Repair Tools

914-5766

Petrol Engine Setting / Locking & Coolant Pump Kit

• For Vauxhall / Opel / Fiat 2.2 16V - Chain Drive

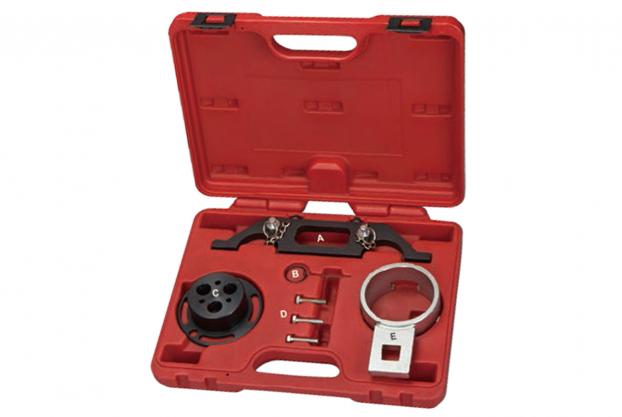

• The kit consists of camshaft setting plate and tensioner locking pin,
  coolant pump sprocket retainer, and crankshaft pulley holding tool
  for 2.2 chain drive Vauxhall/Opel engine, the engine is fitted in Fiat model.
• The essential tool is for engine timing when carrying out cylinder head work
  and coolant pump replacement.

• A.) Camshaft Setting Plate.
        OEM-Vauxhall / Opel: KM-6148. OEM-Fiat: 2.000.000.900.
• B.) Tensioner Locking Pin.  OEM-Vauxhall / Opel: KM-6077.
• C.) Coolant Pump Sprocket Retainer. OEM-Vauxhall / Opel: KM-J-43651.
• D.) M6 x 30 Set Screw (3 per kit)
• E.) Crankshaft Pulley Holding Tool.
        OEM-Vauxhall / Opel: KM-956-1 / KMJ-38122-A. OEM-Fiat: 2.000.001.000.

• Application (Model & Engine Code):---
  Fiat: Croma (05-09). 2.2 16v: 194A1.000.
  Vauxhall / Opel: Astra - G (00-06), Astra - H (06-11), Signum (03-08),
                            Vectra - B (00-02), Vectra - C (02-08), VX220/Speedster (00-06),
                            Zafira - A (00-05), Zafira - B (05-12).
• Engine Code: 2.2 16v: Z22SE, Z22YH.

• For Vauxhall / Opel / Fiat 2.2 16V - Chain Drive

• The kit consists of camshaft setting plate and tensioner locking pin,
  coolant pump sprocket retainer, and crankshaft pulley holding tool
  for 2.2 chain drive Vauxhall/Opel engine, the engine is fitted in Fiat model.
• The essential tool is for engine timing when carrying out cylinder head work
  and coolant pump replacement.

• A.) Camshaft Setting Plate.
        OEM-Vauxhall / Opel: KM-6148. OEM-Fiat: 2.000.000.900.
• B.) Tensioner Locking Pin.  OEM-Vauxhall / Opel: KM-6077.
• C.) Coolant Pump Sprocket Retainer. OEM-Vauxhall / Opel: KM-J-43651.
• D.) M6 x 30 Set Screw (3 per kit)
• E.) Crankshaft Pulley Holding Tool.
        OEM-Vauxhall / Opel: KM-956-1 / KMJ-38122-A. OEM-Fiat: 2.000.001.000.

• Application (Model & Engine Code):---
  Fiat: Croma (05-09). 2.2 16v: 194A1.000.
  Vauxhall / Opel: Astra - G (00-06), Astra - H (06-11), Signum (03-08),
                            Vectra - B (00-02), Vectra - C (02-08), VX220/Speedster (00-06),
                            Zafira - A (00-05), Zafira - B (05-12).
• Engine Code: 2.2 16v: Z22SE, Z22YH.
