• For Vauxhall / Opel, Chevrolet, Saab, Alfa Romeo, Fiat -
  1.4, 1.6, 1.8 Twin Port - Belt Drive

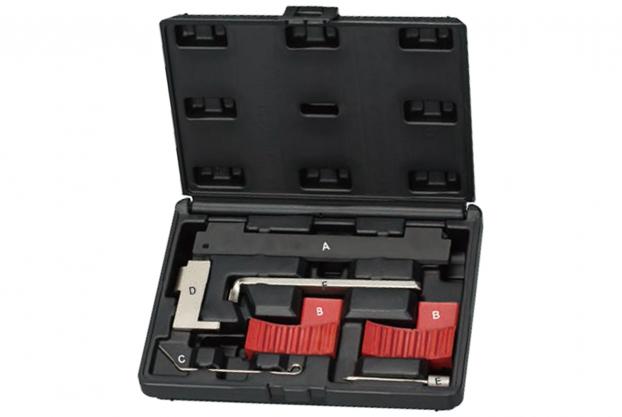

• The kit comprises camshaft setting plate and timing belt tensioner locking pin.
• Suitable for the timing application on 1.4, 1.6 and 1.8 twin port petrol engines
  with the belt drive.

• A.) Camshaft Setting Plate.
        OEM-Vauxhall / Opel: KM-6628-A. OEM-Alfa Romeo / Fiat: 2 000 012 000.
• B.) Camshaft Sprocket Locking Tool.
        OEM-Vauxhall / Opel: KM-6340. OEM-Chevrolet / Saab: EN-6340.
        OEM-Alfa Romeo / Fiat: 2 000 012 100.
• C.) Timing Belt Tensioner Locking Pin.
        OEM-Vauxhall / Opel: KM-6333. OEM-Chevrolet / Saab: EN-6333.
• D.) Flywheel Holding Tool.
        OEM-Vauxhall / Opel: KM-6625. OEM-Chevrolet / Saab: EN-6625.
        OEM-Alfa Romeo / Fiat: 2 000 012 800.
• E.) Auxiliary Belt Tensioner Locking Pin.
        OEM-Vauxhall / Opel: KM-6349 / KM-6130. OEM-Chevrolet / Saab: EN-6349.
• F.) Flywheel Holding Tool. OEM-Vauxhall / Opel: KM-911.

• Application (Model):---
  Vauxhall / Opel: Astra - G (03-10), Astra - H (04-13), Astra - J (09-13), Corsa - D (07-13),
                            Insignia (08-13), Meriva - A (06-10), Signum (06-08), Vectra - C (06-08),
                            Zafira - B (05-13), Zafira - C Tourer (11-15).
  Chevrolet: Aveo (08-13), Cruze (09-12), Orlando (11-15).
  Saab: 9-5 (10-12).
  Alfa Romeo: 159 (05-10).
  Fiat: Croma (06-11), Stilo (05-08).

• Engine Code:---
  1.4 16v: G14D.
  1.6: A16LEL, A16LER, A16LET, A16XER, LDE/A16LER, LDE/A16XER, LLU/A16LET,
         Z16LEL, Z16LER, Z16LET, Z16XE1, Z16XEP, Z16XER, 192B3.000 (Z16XEP).
  1.6 Ecoflex CNG: A16XNT, LGE/A16XNT, Z16XNT.
  1.8: 2HO/A18XEL, 2HO/A18XER, A18XER, Z18XER, 939A4.000.
