• Design to lock the cam and the crankshaft in the position to allow removal and
  replacement of the timing chain fitted to Vauxhall / Opel twin cam engine.

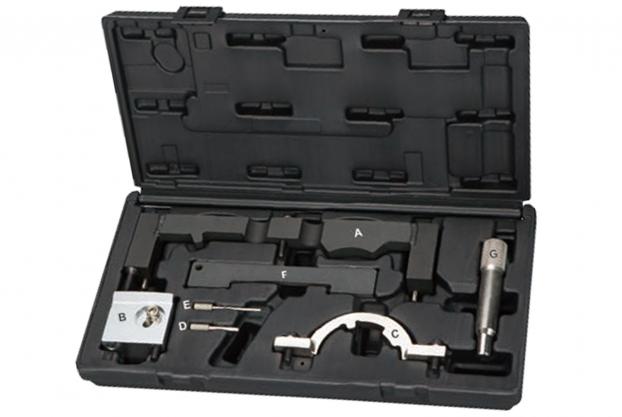

• A.) Camshaft Sensor Disc Setting Tool. OEM: EN-49977-100.
• B.) Inlet Camshaft Adjuster Tool. OEM: EN-49977-200.
• C.) Camshaft Sensor Locating Tool. OEM: EN-49978.
• D.) Chain Tensioner Pin 4mm. OEM: KM-955-1.
• E.) Belt Tensioner Pin 2.5mm. OEM: KM-955-2.
• F.) Camshaft Locking Plate. OEM: KM-953-A.
• G.) Crankshaft Locking Pin. OEM: KM-952.

• Vauxhall / Opel: Adam 1.2 LWD 2012. Adam 1.4 L2Z 2012.
  Adam 1.4 LDD 2012. Ampera 1.4 LUU/A14XFL 2011.
  Astra-J 1.4 LDD/A14XER 2009. Astra-J 1.4 LDD/A14XEL 2009.
  Astra-J 1.4 LUJ/A14NEL 2011.  Astra-J 1.4 LUJ/A14NET 2009.
  Astra-J 1.4 LUJ/A14NET 2011. Corsa-D* 1.0 A10XEP 2009.
  Corsa-D 1.2 A12XEL 2009. Corsa-D 1.2 A12XER 2009. Corsa-D 1.2 A12XER 2011.
  Corsa-D 1.4 A14XEL 2009. Corsa-D 1.4 A14XER 2009. Corsa-D 1.4 A14NEL 2012.
  Insignia 1.4 LUJ/A14NET 2011. Meriva-B 1.4 LDD/A14XER 2010.
  Meriva-B 1.4 LUJ/A14NET 2010. Meriva-B* 1.4 LUH/A14NEL 2011.
  Mokka 1.4 LUJ/A14NET 2012. Zafira-C Tourer 1.4 LUJ/A14NEL 2011.
  Zafira-C Tourer* 1.4 LUJ/A14NET 2011. Aveo 1.2 L2Q/A12XEL 2011.
  Aveo 1.2 LDC/A12XER 2011. Aveo 1.2 LWD/A12XEL 2011.
  Aveo 1.4 LDD/A14XEL 2011. Aveo* 1.4 LDD/A14XER 2011.
