• For quick and professional drilling out damaged or torn-off glow plugs
  without removing the cylinder head.
• Allows recutting or repairing of the glow plug thread and cleaning of
  the electrode bore.
• Exact depth and drilling angle are reached using guide sleeves .
• Suitable for: M10 x 1 glow plug thread on e.g. WV Passat, Audi V6 TDI
  with 2.5I / 2.7l / 3.0l engines.
  With engine codes: AFB, AKE, AKN, ASB, AYM, BAU, BCZ, BDG, BDH,
  BFC, BKN, BKS, BMK,BNG, BSG, BUN, BUG.

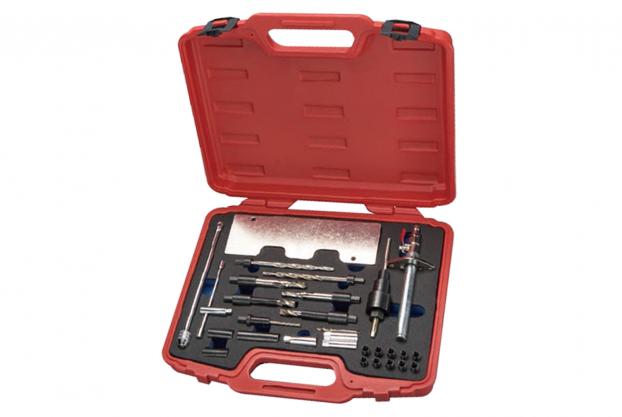

  Includes the following tools: cover plate for intake ports compressed air
  adapter for injector bore 9.1 mm drill for M10 x 1, 11.1 mm drill for M12 x 1,
  tap with guide sleeve for M10 x 1 threads, tap with guide sleeve for M12 x1
  threads, 10 threaded inserts for M10x1 with external thread M12x1,
  M6 x 1.25 taps, extraction tool.
• 2 reamers 4.8 mm, long and short type, reamer 5.8 mm long type.
• 3 guide sleeves 17.5 mm OD – 38 mm length Inside ∅ 9 mm and
  13 mm – 63 mm length, 13 mm inside.∅
• 2.4 – 5.5 mm tapping holder 240 mm long with 1/4” drive.
  3 extractor electrodes for 2.5 – 3.5 - 4 mm.
