• Setting and locking kit is for Porsche 911 and Boxster.
• Fit the range of Porsche 911 & Boxster series 986 and 996 engines.
• Some Boxster 987 and 997 series engines will be covered in this kit.
• Contain the essential tool to set and lock the engine for the timing purpose and
  to refit the gauge on pin and cir - clip during reassembly after major engine work.

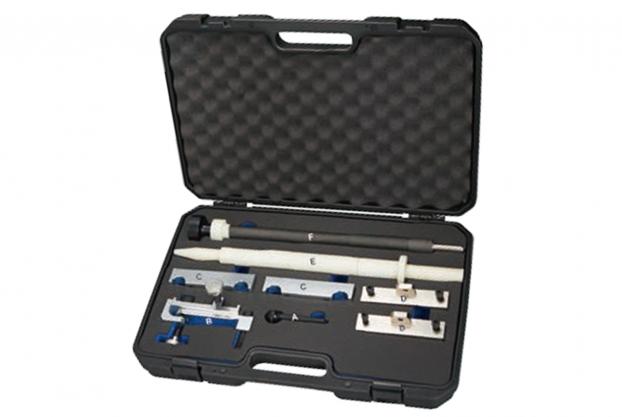

• A.) TDC Alignment Pin. OEM: 9595.
• B.) Camshaft Locking Tool. OEM: 9612.
• C.) Camshaft Support Bearing Block (2). OEM: 9611.
• D.) Camshaft Holding Tool (2). OEM: 9634.
• E.) Connecting Rod Centering Mandrel. OEM: 9608.
• F.) Gauge on Pin and Cir-clip Installer. OEM: 9602.

• Application: Porsche: 911 (97-01), Boxster (97-02).
• Engine Code: 2.5: M9620.
                         2.7: M9622, M9623, M9625, M9720.
                         3.2: M9621, M9624, M9626.
                         3.4: M9601, M9602, M9604, M9721, M9722.
                         3.6: M9603, M9603S, M9670, M9679.
