European Cars Repair Tools

924-5732

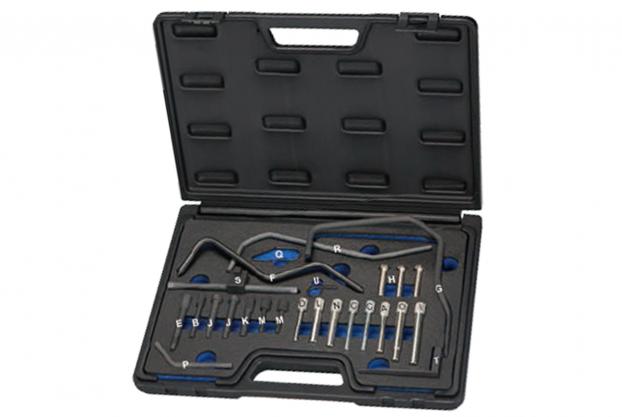

Diesel & Petrol Engine Setting / Locking Tool Kit

• For Citroen / Peugeot Including Cam & Direct Injection Engines

• The huge of PSA petrol and diesel engines require a comprehensive selection of the
  setting / locking pin and tensioner tool for the timing belt replacement/ renewal, and
  provides these tools in one kit.
• Both the petrol and the diesel application are covered, including 1.6, 1.8 and 2.0
  twin cam engines and directing the injection diesel engine.
• In additional to the essential “ Difficult Access ” flywheel pin, it specifically is dimensions
  for each application - pair and single - is included as well as a range of tensioner locking
  and adjusting tool.

• A.) Injection Pump Locking Pin. OEM-Citroen: 5711-TA. OEM-Peugeot: 0178A.
• B.) Injection Pump Locking Pin. OEM-Citroen: 0189-B.
• C.) Balance Shaft Locking Pin (Pair). OEM-Citroen: 5711-TC. OEM-Peugeot: 0178C.
• D.) Injection Pump Locking Pin. OEM-Citroen: 4527-TS1.
• E.) Camshaft Locking Pin. OEM-Citroen: 4527-TS2. OEM-Peugeot: 0132AB.
• F.) Flywheel TDC Locking Pin.  OEM-Citroen: 7014-TJ.  OEM-Peugeot: 0153N.
• G.) Flywheel TDC Locking Pin. OEM-Citroen: 7017-TR. OEM-Peugeot: 0188-D.
• H.) Locking Bolt (Set of 3). OEM-Citroen: 4533-TAC1.    OEM-Peugeot: 0153G.
• I.)  Crank/Camshaft Locking Pin. OEM-Citroen: 4507-TB.
• J.) Camshaft Locking Pin (Pair). OEM-Citroen: 7014-TM. OEM-Peugeot: 0153M.
• K.) Camshaft Locking Pin. OEM-Citroen: 4533-TAC2. OEM-Peugeot: 0132AJ2.
• L.) Crank/Camshaft Locking Pin.  OEM-Citroen: 5711-TB. OEM-Peugeot: 0178B.
• M.) Camshaft Locking Pin (Pair). OEM-Citroen: 9041-TZ. OEM-Peugeot: 0153AB.
• N.) Crank/Camshaft Locking Pin. OEM-Citroen: 7004-TG. OEM-Peugeot: 0132R.
• O.) Crankshaft Locking Pin. OEM-Citroen: 0189-L.
• P.)  Flywheel TDC Locking Pin (Short). OEM-Citroen: 4507-TA. OEM-Peugeot: 0132QZ.
• Q.) Retaining Pin (Roller).
• R.) Tension Tool (Dynamic Roller).
• S.) Tensioner Adjuster. OEM-Peugeot: 0188J2.
• T.) Tensioner Adjuster. OEM-Citroen: 4507-TJ / Peugeot: 0132X1Z.
• U.) Tensioner Locking Pin. OEM-Citroen: 4200-TA / Peugeot: 0153AL.

• Application: Citroen / Peugeot diesel and petrol engines, these engines fit in Fiat,
                       FSO, Tata, LDV and Rover.

• Diesel Engines Including Direct Injection:---
  Citroen AX 1.4D (-94), ZX 1.4D: TUD3 (K9A) Engine.
  AX 1.5D(94-), Saxo 1.5D: TUD5 (VJY/VJZ) Engine.
  Visa 17D, BX 1.7D/TD/1.9D (-93), ZX 1.8D/1.9D (91-), 1.8TD/1.9TD (92-),
  Xsara 1.9D/TD, Xantia 1.9D/TD (93-), Synergie/Evasion 1.9TD, C15D 1.8D,
  Berlingo 1.8D/1.9D, Dispatch/Jumpy 1.9D/TD, Relay/Jumper 1.9D/TD:
  XUD7(A9A)/XUD7TE, XUD9AY(DJY)/XUD9A+AU(D9B), XUD9TE+TFY(DHX) /
  XUD9TFL(D8B), XUD9UTF(D8C)/XUD9BTF(DHX) Engine (XUD9BTF has Electronic
  Controlled Pump). XUD7, XUD9AU(Relay), XUD9TF, XUD7(A9A), XUD9A,
  XUD9TE(Xsara), XUD9BTF.
  Xantia 2.1TD(95-), XM 2.1D/TD, Synergie/Evasion 2.1TD: XUD11A / XUD11ATE /
  XUD11BTE (P8A/P8B/P8C/P9A/PHZ) Engine, 11BTEX(Xantia).
  XM 2.5TD, Relay/Jumper 2.5D/TD(94-) Relay/Jumper 2.5TDi Direct Injection:
  DKATE(THY) / DJ5(T9A) / DJ5T(T8A-THZ) DJ5TED(THX) Engine. DJ5T. DJ5TED.
  Fiat: Ulysse/Scudo 1.9TD XUD9TF(D8B) Engine. FSO Caro 1.9D (94-): XUD9
           Engine. LDV 200 1.9D, Pilot 1.9D (94-): XUD9A Engine.
  Peugeot 106 1.4D (-94): TUD3(K9A) Engine. 106 1.5D (94-): TUD5(VJY/VJZ)
  Engine. 205 1.8D/TD/1.9D, 305 1.8D/1.9D (-89), 306 1.9D/TD(93-),
  309 1.8D/TD/1.9D (-93), 405 1.8TD/1.9D/TD (92-), 406 1.9TD, 806 1.9TD,
  J5/Talbot Express 1.9D (-94), Partner 1.8D/1.9D, Expert 1.9D/TD,
  Boxer 1.9D/TD: XUD7(A9A)/XUD7TE, XUD9AY(DJY)/XUD9A+AU(D9B),
  XUD9TE+TFY(DHX) / XUD9TFL(D8B), XUD9UTF(D8C)/XUD9BTF(DHX) Engine.
  (XUD9BTF has Electronic Controlled Pump).
  406 2.1TD(95-), 605 2.1D/TD, 806 2.1TD: XUD11A/XUD11ATE/XUD11BTE
  (P8A/P8B/P8C/P9A/PHZ) Engine. 605 2.5TD, Boxer 2.5D/TD(95-), Boxer 2.5TDi
  Direct Injection: DKATE(THY)/DJ5(T9A)/DJ5T(T8A+THY) DJ5TED(THX) Engine.
  DJ5T, DJ5TED.
  TATA Loadbeta 1.9D(94-) XUD9(483DL 43/44).
  Rover Metro 1.4D(-94) TUD3(K9A) engine. 115D(95-) TUD5(VJY) Engine.
  218SD/418D Turbo XUD7TE/XUD9A Engine. ✓ ✓

• Petrol Engines Including Twin Cam:---
  Citroen AX 1.0/1.1/1.4, Saxo 1.0/1.1/1.4/1.6, C15 1.0/1.1/1.4, BX 1.1/1.4 (-93),
  ZX 1.1/1.4, Berlingo 1.1/1.4, Xsara 1.4/1.6: TU9-1.0/TU1-1.1/TU3-1.4/TU5JP-1.6
  (CDY/CDZ/HDY/HDZ/KDX/KDY/KFX/KFZ/NFZ) Engine. Saxo 1.6 16v: TU5J4/L3
  (NFX) Twin Cam. Visa 1.6 GTi, ZX 1.6/1.9, BX 1.6/1.9: XU5(B1E/B6D)/XU9(D6A/
  D6B) engine (with Sliding Tensioner-92). ZX 1.6/1.8/1.9/2.0,
  Xsara 1.8, BX 1.6/1.9(92-), Xantia 1.6/1.8/2.0, XM 2.0/Turbo, Synergie 2.0/Turbo,
  Relay/Jumper 2.0: XU5(BDY/BDZ/BFZ)/XU7(L6A/LFX/LFZ), XU9(D6A/D6B/D6D/
  DDZ/DKZ/DFZ)  XU10J2(RFU/RGX/RGY/RFZ/RFX/RFW/RDZ) Engines (with Eccentric
  Tensioner). EarlyXU7/9(-93). Xsara 1.8 16v, Xantia 1.8 16v: XU7JP4(LFY) Twin
  Cam Engine. BX GTi 16v(-92), ZX 2.0 16v, Xantia 2.0 16v, XM 2.0 16v:
  XU9J4(D6C)/XU10J4(RFY/RFV/R6E) Twin Cam Engine.
  Peugeot 106 1.0/1.1/1.4/1.6, 205 1.0/1.1/1.4, 306 1.1/1.4/1.6, 309 1.1/1.4 (-93),
  Partner 1.1/1.4, 405 1.4 (-94): TU9-1.0/TU1-1.1/TU3-1.4/TU5JP-1.6
  (CDY/CDZ/HDY/HDZ/KDX/KDY/KFX/KFZ/NFZ) Engine.
  106 1.6 16v (96-): TU5J4/L3(NFX) Twin Cam engine.
  205 1.6/1.9, 305 1.6/1.9, 309 1.6/1.9,
  405 1.6/1.9: XU5(B1E/B6D)/XU9(D6A/D6B) Engine (with Sliding Tensioner-92).
  205 1.6/1.9 (92-), 306 1.8/2.0, 309 1.6/1.9 (92-), 405 1.6/1.8/1.9/2.0 (92-),
  406 1.6/1.8/1.9/2.0, 605 2.0, 806 2.0/Turbo, Boxer 2.0: XU5(BDY/BDZ/BFZ)/XU7
  (L6A/LFX/LFZ), XU9(D6A/D6B/D6D/DDZ/DKZ/DFZ), XU10J2(RFU/RGX/RGY/RFZ/
  RFX/RFW/RDZ) Engine (with Eccentric Tensioner). EarlyXU7/9 (-93).
  306 1.8 16v, 406 1.8 16v: XU7JP4(LFY) Twin Cam Engine.
  306 2.0 16v, 309 GTi 16v (-94), 405 Mi 16v (-94), 405 2.0 16v, 406 2.0 16v,
  605 2.0 16v: XU9J4(D6C)/XU10J4(RFY/RFV/R6E) Twin Cam Engine.
