914-5291

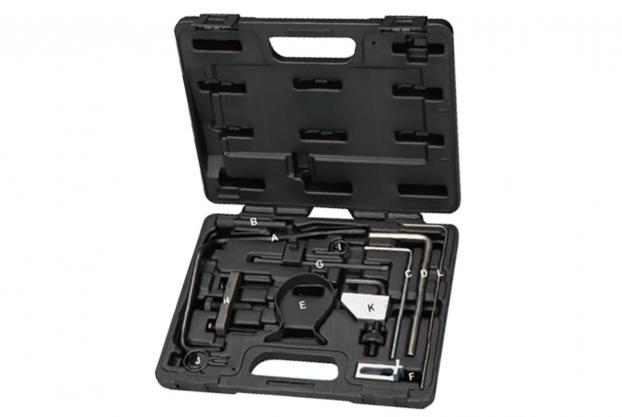

Engine Timing Tool Kit For PSA / Fiat DW10 - DW12

• This kit introduces the tool required to set the valve timing on the extensive
  range of DW10 and DW12 diesel engine found in PSA and Fiat range.
• DW10 engine range has a 2.0 liter capacity and was introduced in 1998;
  it appears in the both single and twin overhead camshaft arrangement.
• The twin cam 16 valve system has one camshaft drive by the cam belt
  and the second camshaft drive by a chain in the head.
• DW12 range is 2.2 liter capacity and was introduced in 2000.

• A.) Crankshaft Locking Pin (8mm). OEM: 0188Y.
• B.) Camshaft Locking Pin. OEM: 0188M.
• C.) Flywheel Locking Pin. OEM: 0188X.
• D.) Auxiliary Drive Belt Tensioner Locking Pin (4mm). OEM: 0188Q1.
• E.) Cam Belt Retaining Clip. OEM: 0188K.
• F.) Flywheel Holding Tool. OEM: 0188F.
• G.) Cam Belt Tensioner Tool. OEM: 0188J2.
• H.) Crankshaft Pulley Puller / Extractor. OEM: 0188P.
• I.)  Cam Belt Tensioner Locking Pin. OEM: 0153AL/4200TA.
• J.) Crankshaft Pulley Centralization Tool. OEM: 0188AH.
• K.) Cam Belt Clamp. OEM: 0188AD.
• L.) Auxiliary Belt Tensioner Locking and Crank Pinion Alignment Tool. OEM: 0188Q2.






• Application (Model):---
  Citroen 2.0 lt: C4 04-12, C5 99-12, C8 02-12, DS4 11-12, Berlingo 99-07, Dispatch,
                         Jumpy, Relay 99-12 Synergie, Evasion 99-07 Xantia 98-01,
                         Picasso 99-07, Picasso, Grand Picasso 06-11.
  Citroen 2.2 lt: C-Crosser 07-12, C5 00-09, C6 07-11, C8 01-10 Relay, Jumper 02-06.
  Peugeot 2.0 lt: Expert 99-12, Boxer 01-06, 206 99-06, 306 99-02, 307 01-09,
                406 99-04, 407 04-11, 308 07-12, 607 00-11, 806 99-02, 807 05-10,
                508 11-12, 3008 09-12, 5008 09-12, RCZ 10-12.
  Peugeot 2.2 lt: 406 00-06, 407 05-11, 508 11-12, 607 00-09, 807 07-10, 4007 07-10,
                Boxer 02-06.
  Fiat 2.0 lt: Ulysse 03-11, Scudo 04-12, Ducato 01-06. Fiat
         2.2 lt: Ulysee 02-11 / Ducato 06-12

• Engine code:---
  2.0 lt: DW10ATED4, DW10JATED4, DW10BTED/L3, DW10ATD, DW10TD,
             DW10ATED, D10BTED, DW10UTD, DW10TD, DW10CTED 4, RHA, RHE,
             RHF, RHG, RHH, RHJ, RHK, RHM, RHR, RHS, RHT, RHV, RHW, RHX, RHY,
             RHZ. 2.2 lt: DW12MTED4, DW12BTED4, D12TED4/L4, DW12UTED,
             DW12ATEDL/L4, DW12CTED4, 4HK, 4HL, 4HN, 4HP, 4HR, 4HS, 4HT, 4HW,
             4HX, 4HY, 4HZ.
