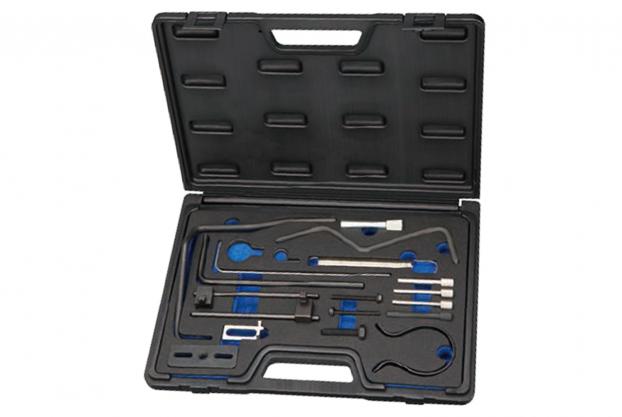

• For Citroen, Peugeot, Fiat 1.4D, 1.6D, 2.0D, 2.2D HDi/JTD - Belt Drive

• Specialised timing tool kit covering belt replacement applications on a comprehensive
  range of PSA 1.4, 1.6, 2.0 and 2.2HDi common rail diesel engines as well as some
  Fiat 2.0D and 2.2D JTD/Multijet common rail diesel engines.
  Includes tools for adjustable crankshaft timing gear.

• OEM NO:---
  Citroen / Peugeot: 0153-AL, 0188-AH, 0188-D, 0188-F, 0188-J/J1, 0188-J2, 0188-K,
  0188-M, 0188-P/P2, 0188-Q, 0188-X, 0188-Y, 0194-A, 0194-B, 0194-C.
  Fiat: 1.860.863.000, 1.871.000.400, 2.000.020.300, 2.000.023.200.

• Application:---
  Citroen: Berlingo I/II (99-01), Berlingo III (08-16), C-Crosser (07-12), C1 (05-10),
                C2 (03-10), C3 I/II (02-10), C3 III (10-13), C3 Picasso (09-15),
                C3 Pluriel (04-10), C4 Picasso/Grand Picasso (06-13), C4 (04-11),
                C4 II (11-13), C5 (00-04), C5 II (04-08), C5 III (07-15), C6 (06-11), C8 (02-10),
                DS3 (09-15), DS4 (11-14), DS5 (12-15), Dispatch/Jumpy I/II (99-07),
                Dispatch/Jumpy III (07-12), Nemo (08-10), Relay/Jumper (01-02),
               Relay/Jumper II (02-06), Synergie/Evasion (99-02), Xantia (98-01),
               Xsara (99-00), Xsara II (02-06), Xsara Picasso (01-10).
  Fiat: Ducato (01-06), Scudo (07-12), Ulysse (02-11).
  Peugeot: 107 (05-10), 1007 (05-10), 206 (01-09), 206+ (09-13), 206CC (05-07),
                 207CC (07-15), 208 (12-13), 306 (99-02), 307 (01-08), 307CC (07-13),
                 308 (07-16), 308CC (07-14), 3008 (09-15), 406 (98-04), 406 Coupe (00-06),
                 407 (04-11), 407 Coupe (07-12), 508 (11-16), 5008 (09-15), 4007 (07-12),
                 4008 (12-16), 607 (00-11), 806 (99-02), 807 (02-12), Bipper (08-10),
                 Boxer (01-02), Boxer II (02-06), Partner III (12-16), Expert III (10-16),
                 RCZ (10-15).

• Engine Codes:---
  1.4D HDi: DV4C(8HP), DV4C(8HR), DV4TD(8HT), DV4TD(8HW), DV4TD(8HX),
                    DV4TD(8HZ), DV4TED(8HS), DV4TED4(8HX), DW4TD(8HZ).
  1.6D HDi: DV6ATED(9HX), DV6ATED4(9HX), DV6AUTED4(9HX), DV6BTED4(9HT),
                    DV6BTED4(9HW), DV6BUTED4(9HT), DV6C(9HD), DV6C(9HL),
                    DV6C(9HR), DV6D(9HP), DV6DTED(9HE), DV6DTED(9HF),
                    DV6DTED(9HJ), DV6DTED(9HP), DV6ETED(9HN), DV6TED(9HY),
                    DV6TED4(9HV), DV6TED4(9HW), DV6TED4(9HX), DV6TED4(9HY),
                    DV6TED4(9HZ), DV6TED4B(9HV), DV6TED4BU(9HS), DV6TEDB4(9HS),
                    DV6TEDB4(9HV). 2.0D HDi/JTD: DW10ATD(RHY), DW10ATED(RHS),
                    DW10ATED(RHW), DW10ATED(RHZ), DW10ATED4(RHM),
                    DW10ATED4(RHW), DW10ATED4/L4(RHT), DW10BTED(RHX),
                    DW10BTED/L3(RHX), DW10BTED/L3(RHZ), DW10BTED4(RHF),
                    DW10BTED4(RHJ), DW10BTED4(RHL), DW10BTED4(RHR),
                    DW10C(RHD), DW10C(RHH), DW10CTED4(RH02), DW10CTED4(RHC),
                    DW10CTED4(RHD), DW10CTED4(RHE), DW10CTED4(RHH),
                    DW10JATED4(RHM), DW10JATED4(RHW), DW10JTED4(RHW),
                    DW10TD(RHY), DW10TD(RHZ), DW10UTD(RHV), DW10UTED4(RHG),
                    DW10UTED4(RHK).
  2.0D Blue Hdi: DW10FD(AHX).
  2.2D HDi/JTD: DW12ATED(4HX), DW12ATED(4HZ), DW12ATED4/L4(4HW),
                            DW12BTED4(4HP), DW12BTED4(4HR), DW12BTED4(4HS),
                            DW12BTED4(4HT), DW12BTED4(4HX), DW12BTED4/4L(4HW),
                            DW12CTED4(4HL), DW12MTED4(4HK), DW12MTED4(4HN),
                            DW12TED4(4HX), DW12UTED(4HY).
