• The essential tool is for the timing belt replacement on a wide range
  of Renault, Nissan and Vauxhall / Opel diesel engine.
• Assemble to offer coverage for 1.6 and 2.0 petrol engines from
  Renault which are used in Nissan range.
• This locking tool enables the diesel pump to be locked in the position
  whilst servicing the timing belt on Renault 1.9 DTi engine.

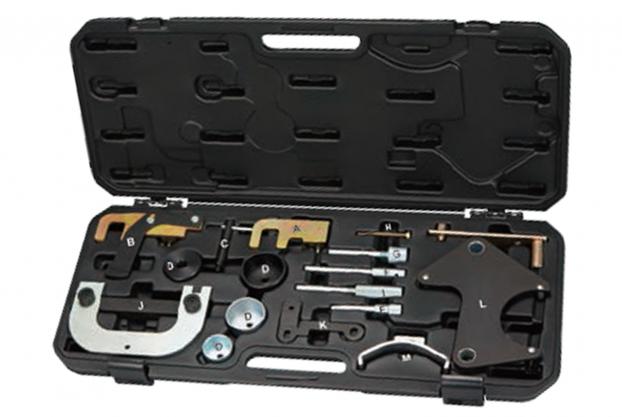

• A.) Inlet Camshaft Locking Tool.       OEM: KM 6205 / MOT1534.
• B.) Exhaust Camshaft Locking Tool. OEM: KM 6204 / MOT1537.
• C.) Pump Locking Pin.                OEM: MOT 1538.
• D.) Tensioner Tool Set (5 Parts). OEM: MOT 1543.
• E.) Crankshaft Timing Pin.          OEM: MOT 1054.
• F.) Crankshaft Timing Pin.           OEM: MOT 1536.
• G.) Crankshaft Timing Pin.          OEM: MOT 1489.
• H.) M6 Tensioning Adjustment Screw. OEM: M6 x 30mm.
• I.)  Crankshaft Locking Pin. OEM: MOT 1489.
• J.) Camshaft Setting Bar.    OEM: MOT 1496.
• K.) Mounting Bracket.          OEM: MOT 1750.
• L.) Camshaft Sprocket Alignment Tool. OEM: MOT 1490-01.
• M.) Timing Injection Pump Holder.        OEM: MOT 1200-01, MOT1200-1.

• Application (Model):---
  Renault: Avantime (05-07), Clio II (01-06), Clio III (05-08), Espace (00-08),
                Kangoo (00-08), Laguna (99-01), Laguna II (04-07), Master (00-06),
                Megane(99-03), Megane II (02-08), Modus (04-08), Scenic (99-03),
                Scenic II (03-08), Trafic (01-08), Twingo (07-08).
  Nissan: Almera N16(02-06), Interstar (02-06), Kubistar (03-08), Micra K12 (03-08),
               Note (06-08), Primastar(02-07), Primera P12 (03-07), Qashqai (08-09).
  Vauxhall / Opel: Movano (00-08), Vivaro (01-08).

• Engine Code: 1.5 - K9K, 1.9 - F9Q, 2.2 - G9T, 2.5 - G9U.
  Prevent the engine shafts (camshaft, crankshaft) from turning belt tensioner when
  changing a timing belt or during other engine repair.
• Clio / Clio lll 1.4 / 1.6 2003, Megane / Scenic 1.6 1998, Laguna 1.6 1998:
  Engine Code: K4J 712, 713, 750. K4M 700, 701, 720, 724, 748.
• Clio Sport 2.0 1998, Megane / Scenic 2.0 1998, Laguna 1.8 / 2.0 1998,
  Espace 2.0 1998: Engine Code: F4P 760. F4R 700, 701, 730, 740, 741, 780.
• Injection Pump Locking Tool for Renault Clio, Megane, Laguna, Kangoo 1.9 DTi
  engines.
• Engine Code: F9Q 717/731/780.
