Engine Timing Tool For VW / Audi

• The essential tool is for VAG petrol and diesel engines from 1996 onward.
• The kit includes tool suitable for older model with 1.9 diesel engine.
• This kit designs to fit the newest common rail diesel engine which is
  significantly different from older PD engine.
• The set includes crankshaft pulley locking tool for the round (T10050)
  sprocket at 12 o’clock position.
• The CR engine combines the belt and the gear drive by using a toothed
  belt to transfer the drive from the crankshaft to one of the cam shafts
  when using gear to transfer the drive from one cam to the other.

• Application:---
  Audi A3 1.6 2009-Engine Code: CAYB | CAYC. A3 / A4 / A6 / Q5 2.0 2007-
          Engine Code: CBAB, CBBB, CBAA, CFFB, CAGA, CAHA, CAGB,
         CAHB, CAGC.
  Seat Exeo 2.0 2009-Engine Code: CAGA, CAHA.
  Volkswagen Golf / Golf Plus 1.6 2009-Engine Code: CAYB, CAYC.
                      Tiguan / Passat / Eos / Golf / Golf Plus 2.0 2008-
                      Engine Code: FCA, CAAA, CAAB, CAAC, CCHA, CAVA,
                      CBAB, CBDA, CBDD, CBBB, CBAA, CBAC, CBDA, CBDC.

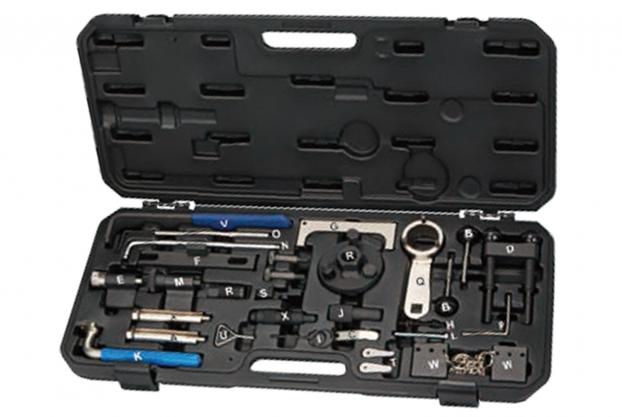

• A.) Support Guides. OEM: 3369, T30092.
• B.) Injection Pump Pulley Locking Pin x 2. OEM: 3359, T20102, U40074.
• C.) Tensioner Locking Tool. OEM: 23-058, T10008, 310-084.
• D.) Camshaft Locking Tool. OEM: T10016, T10074.
• E.) Crankshaft Locking Tool (Bored). OEM: 23-059, T10050, 310-085.
• F.) Camshaft Setting Plate. OEM: T20038/MP-1-312/3418.
• G.) Camshaft Setting Bracket. OEM: 2065A, U-40021.
• H.) Stud and Nuts. OEM: M5 x 55mm.
• I.)  Tensioner Retaining Pin. OEM: T40011.
• J.) Injection Pump Pulley Timing Pin 15.4 mm. OEM: 2064, U20003.
• K.) Tension Wrench. OEM: T10020, V.159, 3387, U-30009.
• L.) Set Screw. OEM: M5 x 60mm.
• M.) Crankshaft Pulley Locking Tool (Non - bored). OEM: T10100.
• N.) Tensioner Pulley Adjustment Tool (2.4mm Hex Key). OEM: T10264.
• O.) Tensioner Pulley Locking Tool. OEM: T10265.
• P.) Auxiliary Tensioner Locking Tool (3.9mm). OEM: T40098.
• Q.) Sprocket Holding Tool.      OEM: T10051.
• R.) Cam Sprocket Hub Puller. OEM: T10052.
• S.) Oil Pump / Balancer Shaft Alignment. OEM: T10255.
• T.) Shim Set (2). OEM: Shims. U.) Tensioner Pin. OEM: T10115.
• V.) Tension Lever. OEM: T10004.
• W.) Fixing Gauge for Camshaft. OEM: T30094, 3458.
• X.) Locking Pin for Crankshaft.  OEM: T40069.
