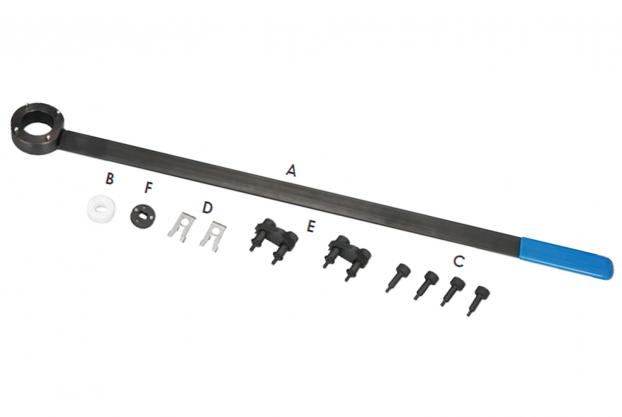

• The kit consists of 6 main components which includes the tool recommended
  by the manufacturer to set No.1 cylinder at TDC.
• It is important that the correct process is followed when setting up the engine.

• A.) Crank Counter Hold Tool. OEM: T10355.
• B.) Crankshaft Thrust Piece. OEM: T10368.
• C.) Drift for Camshaft Slide Pieces. OEM: T40196.
• D.) Timing Chain Tensioner. OEM: T40267.
• E.) Camshaft Clamp (Exhaust & Inlet). OEM: T40271.
• F.) Camshaft Control Valve Removal Tool. OEM: T10352, T10352/1.
• Application: VW / Audi 2.0L Turbo Timing Set is applicable to VW and Audi vehicles
                       with a 2.0L (turbo) engine.
  T10355: Use for counter - holding the vibration damper when loosening or tightening
                the center bolt of the crankshaft.
  T10368: Use removing and installing the lower timing chain cover.
  T40196: Use for sliding pieces on the camshaft on 2.0L 4v turbo engine.
  T40267: Locking clip for the chain tensioner.
  T40271: Use to lock the camshaft sprocket in TDC position when installing the timing
                chain.
  T10352: Use for removal and installation of 7/3 way the central valve for the camshaft
                adjustment. Comparable to factory tool number T10352 and T10352/1.
