914-5346

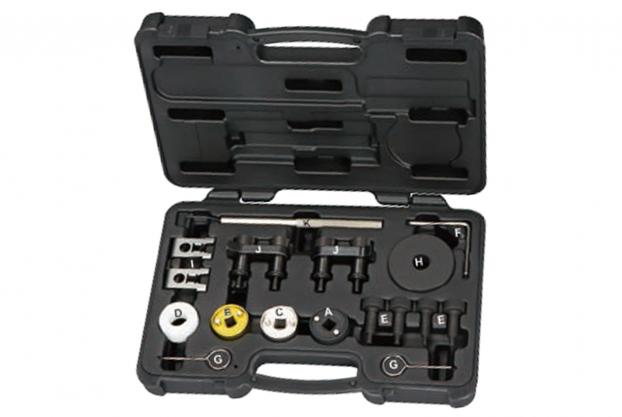

Engine Timing Tool For VAG

• Use for correcting the camshaft and the crankshaft timing position.
• 4 cylinder EA888 petrol: 1.8 R4 16v TSi/TFSi, 2.0 R4 16v TSi/TFSi.

• A.) Camshaft Control Valve Removal Tool. OEM: T10352/2.
• B.) Camshaft Control Valve Removal Tool. OEM: T10352/1.
• C.) Camshaft Control Valve Removal Tool. OEM: T10352.
• D.) Crankshaft Thrust Piece T10368.
• E.) Drift for Camshaft Slide Pieces. OEM: T40196.
• F.) Auxiliary Drive Belt Tensioner Locking Pin. OEM: T10060A.
• G.) Tensioner Locking Pin. OEM: T40011.
• H.) Pressure Piece. OEM: T10354.
• I.)  Timing Chain Tensioner T40267
• J.) Camshaft Clamp (Exhaust & Inlet). OEM: T40271.
• K.) Oil Pump Tensioner Locking Pin.    OEM: T40265.

• Application: 2006 – 2013 VAG series TSi, TFSi EA888 engines (1.8 L, 2.0 L).
• Audi A4 Quattro 1.8 CDHB 2008. A4 Quattro 2.0 CDNC 2008.
  A4 Quattro 2.0 CFKA 2009. A5 Coupe/Cabriolet 1.8 CDHB 2009.
  A5 Coupe/Cabriolet 2.0 CDNB 2008. A5 Coupe/Cabriolet 2.0 CDNC 2008.
  A5 Sportback 1.8 CDHB 2009. A5 Sportback 2.0 CDNB 2009.
  A 5 Sportback 2.0 CDNC 2009. A6 2.0 CDNB 2012. Q3 2.0 CCZC 2011.
  Q3 2.0 CPSA 2011. Q5 2.0 CDNB 2009. Q5 2.0 CDNC 2008. TT 1.8 CDAA 2008.
  TT 2.0 CCZA 2008. TT 2.0 CESA 2010. TT 2.0 CETA 2010. A4 1.8 CJEB 2012.
  A4 Quattro 1.8 CJEB 2012. A5 Coupe/Cabriolet 1.8 CJEB 2011.
  A5 Sportback 1.8 CJEB 2011.
• Seat Alhambra 2.0 CCZA 2010. Altea/Altea XL 1.8 CDAA 2009.
  Altea/Altea XL 2.0 CCZB 2009. Exeo 1.8 CDHA 2010. Exeo 1.8 CDHB 2010.
  Exeo 2.0 CDND 2010. Leon 1.8 CDAA 2009. Leon 1.8 CDAA 2011.
  Leon 2.0 CCZB 2009. Toledo 1.8 CDAA 2009. Toledo 2.0 CCZB 2009.
• Skoda Octavia II 1.8 CDAA 2008. Octavia II 1.8 CDAB 2009. Octavia II 2.0 CCZA 2008.
  Superb II 1.8 CDAA 2008. Superb II 1.8 CDAB 2009. Superb II 2.0 CCZA 2009.
  Yeti 1.8 CDAA 2009. Yeti 1.8 CDAB 2009.
• Volkswagen Eos 2.0 CCZA 2009. Golf VI 1.8 CDAA 2009. Golf VI 2.0 CCZB 2009.
  Golf VI Estate 2.0 CCZA 2009. Passat 1.8 CDAA 2011. Passat 1.8 CDAB 2011.
  Passat 2.0 CCZB 2011. Passat 1.8 CGYA 2008. Passat CC 1.8 CGYA 2008.
  Sharan 2.0 CCZA 2011. Beetle 2.0 CCZA 2011. CC 1.8 CDAA 2012.
  Eos 2.0 CCZB 2009. Passat 1.8 CDAA 2009. Passat 1.8 CDAB 2009.
  Passat 2.0 CCZA 2009. Passat Alltrack 1.8 CDAA 2012.
  Passat Alltrack 2.0 CCZB 2012. Passat CC 1.8 CDAA 2009.
  Passat CC 1.8 CDAB 2009. Scirocco 2.0 CCZB 2009. Tiguan 2.0 CCZA 2009.
  Tiguan 2.0 CCZB 2011. Tiguan 2.0 CCZC 2009. Tiguan 2.0 CCZD 2011.

• T10352: The special 2 inner pins design to turn the camshaft into position.
  T10352/1: The special 2 inner pins design to turn the camshaft adjusting valve.
  T10368: Use removing and installing the lower timing chain cover.
  T40196: Use for the sliding pieces on the camshaft on 2.0L 4v turbo engine.
• Engine Code: CEAA, CGMA, CCUA, CAEB, BYJ, BYE, CDZA, CADA.
