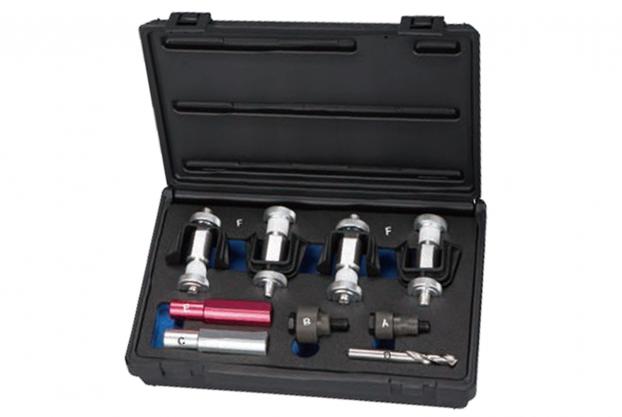

• With the assembly tool, it is possible to install new or replace the defective
  PDC holders on bumper and for retroactive punching of PDC sensor holes.

• A.) Screw Hole Punch ø 18.2 mm: Cutting tool and counter-hold made from metal.
        Tightening a hexagon nut causes the stamp and dies the plate to be pressed
        against each other. Replacement part for PDC retainer assembly tool.
        For making the holes in plastic parts - ø 18.2 mm.
• B.) Screw Hole Punch ø 26 mm: Cutting tool and counter-hold made from metal.
        Tightening a hexagon nut causes the stamp and dies plate to be pressed against
        each other. Replacement part for PDC retainer assembly tool.
        For making holes in plastic parts - ø 26 mm.
• C.) 1 Centering Drift ø 18.2 mm: Pin with support for the plastic housing.
        Replacement part for PDC retainer assembly tool. Pin for centering the plastic
        sleeve of the PDC retainer - ø 18.2 mm.
• D.) 1 Drill Bit: Replacement part for PDC retainer assembly tool.
        For drilling the holes in plastic - ø 10.2 mm.
• E.) 1 Centering Drift ø 17.8 mm: Pin, red anodized, the centering pin is used in
        conjunction with the assembly tool for PDC holder.-
• F.) 4 Attachment Aids for PDC Holder: The attachment devices are used with the
       assembly tool for PDC holder. They serve as a means of attaching PDC holder
       during the bonding process on the bumper.
