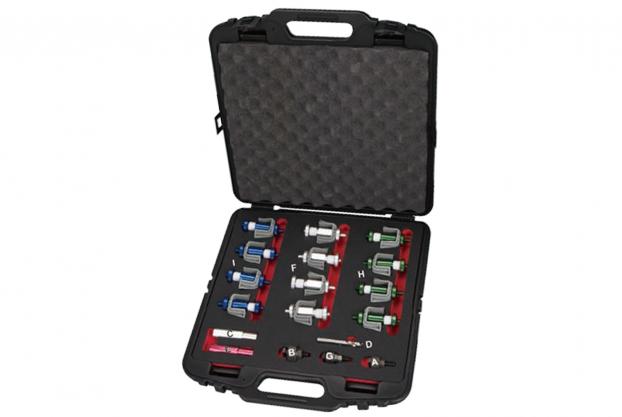

• With the assembly tool, it is possible to install new or replacing defective PDC holders
  on bumpers.
• For retroactive punching of PDC sensor holes.
• The supplements are for the various modelspecific diameters of PDC sensor.

• A.) Screw Hole Punch ø 18.2 mm: Cutting tool and counter-hold made from metal.
        Tightening a hexagon nut causes the stamp and dies plate to be pressed against
        each other. Replacement part for PDC retainer assembly tool. For making holes in
        plastic parts - ø 18.2 mm.
• B.) Screw Hole Punch ø 26 mm: Cutting tool and counter-hold made from metal.
        Tightening a hexagon nut causes the stamp and dies plate to be pressed against
        each other. Replacement part for PDC retainer assembly tool. For making holes in
        plastic parts - ø 26 mm.
• C.) 1 Centering Drift ø 18.2 mm: Pin with support for plastic housing.
        Replacement part for PDC retainer assembly tool.
        Pin for centering plastic sleeve of PDC retainer - ø 18.2 mm.
• D.) 1 Drill Bit: Replacement part for PDC retainer assembly tool.
       For drilling holes in plastic - ø 10.2 mm.
• E.) 1 Centering Drift ø 17.8 mm: Pin, red anodized.
       The centering pin is used in conjunction with the assembly tool for PDC holder
• F.) 4 Attachment Aids for PDC Holder. The attachment devices are used with the
       assembly tool for PDC holder. They serve as a means of attaching the PDC holder
       during the bonding process on the bumper.
• G.) Screw Hole Punch ø 18.4 mm: Cutter and counter-hold made of metal.
        Tightening a hexagon nut causes the stamp and die plate to be pressed against
        each other. Replacement part for PDC holder assembly tool. For punching holes in
        plastic parts - ø18.4 mm. Can only be used in conjunction with securing device.
• H.) 4 Attachment Aids: Replacement part for PDC holder assembly tool.
        For securing PDC bracket during bonding.
        Can only be used in conjunction with hole punch ø18.4.
• I.)  4 attachment Aids: -Attachment device for PDC holder assembly tool.
       The attachment devices are used to set-up the PDC holder assembly tool.
       The attachment devices serve to fix the PDC holder during the bonding process.
