• Material: PA6 + GF15%.
• Place pistons in appropriate cylinder bore.

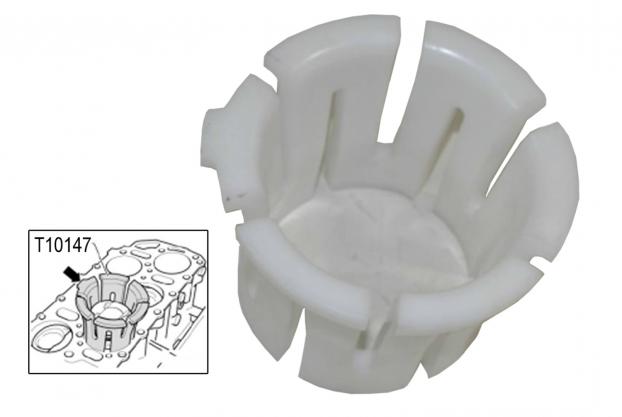

• If a new Piston Insertion Funnel (T10147) is used, pistons must first be guided twice
  through the funnel with lubricated piston rings and any shavings resulting from this
  must be removed.
• Hold funnel (with piston inserted) on upper edge and press piston in with both thumbs.
• Push piston in until it protrudes approximately 15 mm from lower edge of funnel.
• Then the pistons can be installed with piston rings.
• Push piston by hand into oiled piston installation tool.
• Flat side of piston crown must face toward funnel pin - arrow.
• Funnel pin - arrow - must point toward center of cylinder block.
• Press funnel tightly against cylinder block and push piston in.
