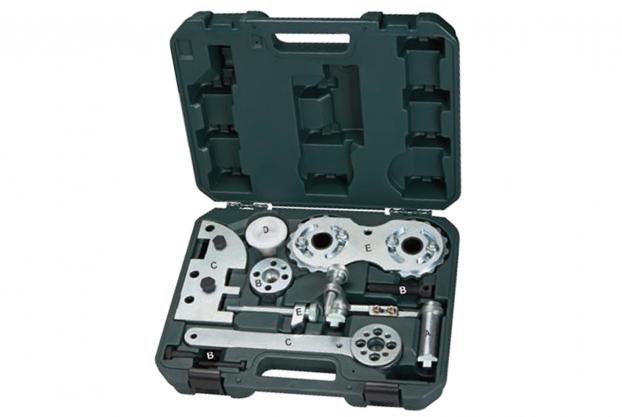

Volvo B4204 (8 Speed Transmission) Camshaft Alignment Tool Kit

European Cars Repair Tools

914-5357

← →

Description
Specification

• Special design to align the engine camshaft and the crankshaft position, and to correct
into the side cover.

• A.) Position Setting. OEM: 999 7490.
Model: S60L, S80 (07-), V40 (13-), V40 Cross Country, V541, V60, V60 Cross Country,
V70 (08-), XC60, XC70 (08-), XC90 (16-), S60 (11-).
• Engine Code: B4154T5, B4154T6, B4204T10, B4204T11, B4204T12, B4204T15,
B4204T19, B4204T20, B4204T21, B4204T23, B4204T27, B4204T28, B4204T32,
B4204T35, B4204T37, B4204T38, B4204T41, B4204T9, B4154T4.

• B.) Puller. OEM: 999 7493.
Model: S60 Cross Country, S60L, S80 (07-), V40 (13-), V40 Cross Country, V541,
V542, V60, V60 Cross Country, V70 (08-), XC60, XC70 (08-), XC90 (16-), S60 (11-).
• Engine Code: B4154T5, B4154T6, B4204T10, B4204T11, B4204T12, B4204T15,
B4204T19, B4204T20, B4204T21, B4204T23, B4204T27, B4204T28, B4204T32,
B4204T35, B4204T37, B4204T38, B4204T41, B4204T9, B4154T4, D4204T11,
D4204T14, D4204T20, D4204T23, D4204T4, D4204T5, D4204T6, D4204T8, D4204T9.
• Power Transmission: M66, TF-71SC, TG-81SC, TG-81SC AWD

• C.) Counter-hold. OEM: 999 7495.
Model: S60L, S80 (07-), V40 (13-), V40 Cross Country, V541, V542, V60,
V60 Cross Country, V70 (08-), XC60, XC70 (08-), XC90 (16-), S60 (11-).
• Engine Code: B4154T5, B4154T6, B4204T10, B4204T11, B4204T12, B4204T15,
B4204T19, B4204T20, B4204T21, B4204T23, B4204T27, B4204T28, B4204T32,
B4204T35, B4204T37, B4204T38, B4204T41, B4204T5, B4154T4, B4204T9,
D4204T11, D4204T14, D4204T20, D4204T23, D4204T4, D4204T5, D4204T6,
D4204T8, D4204T9.

• D.) Drift. OEM: 999 7496.
Model: S60L, S80 (07-), V40 (13-), V40 Cross Country, V541, V542, V60,
V60 Cross Country, V70 (08-), XC60, XC70 (08-), XC90 (16-), S60 (11-).
• Engine Code: B4154T5, B4154T6, B4204T10, B4204T11, B4204T12, B4204T15,
B4204T19, B4204T20, B4204T21, B4204T23, B4204T27, B4204T28, B4204T32,
B4204T35, B4204T37, B4204T38, B4204T41, B4204T9, B4154T4.

• E.) Counter-hold. OEM: 999 7497.
Model: S60L, S80 (07-), V40 (13-), V40 Cross Country, V541, V542, V60,
V60 Cross Country, V70 (08-), XC60, XC70 (08-), XC90 (16-), S60 (11-).
• Engine Code: B4154T5, B4154T6, B4204T10, B4204T11, B4204T12, B4204T15,
B4204T19, B4204T20, B4204T21, B4204T23, B4204T27, B4204T28, B4204T32,
B4204T35, B4204T37, B4204T38, B4204T41, B4204T9, B4154T4.

• Special design to align the engine camshaft and the crankshaft position, and to correct
into the side cover.
