914-5366

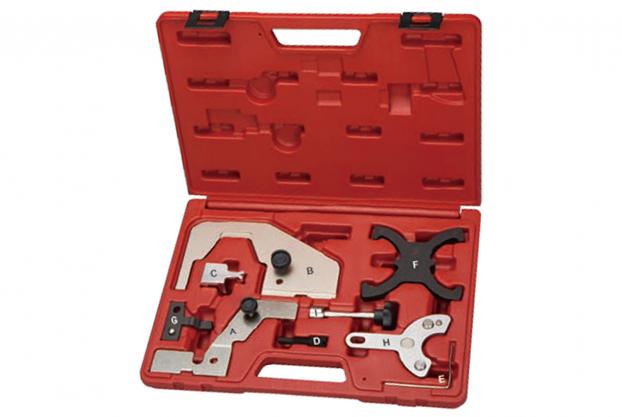

Volvo Timing Tool Set

• Comprehensive the setting and locking kit covers the engine which is fitted to a
  large range of Ford, Volvo and some Mazda vehicle.
• Contain the time saving tool to correctly align the timing cover on Ford and Volvo
  engines and the crankshaft pulley holder for Mazda engine.

• A.) Camshaft Alignment Plate >05-11. OEM-Ford: 303-1565.
• B.) Camshaft Alignment Plate >05-11.
        OEM-Ford: 303-1504. OEM-Volvo: 999-7405. OEM-Mazda: 303-1061.
• C.) Crank Sensor Alignment Tool. OEM-Ford: 303-1521. OEM-Volvo: 999-7416.
• D.) Crankshaft Timing Pin.
        OEM-Ford: 303-748. OEM-Volvo: 999-7406. OEM-Mazda: 303-507
• E.) Tensioner Pin (Ø2mm). OEM-Ford: 303-1054.
• F.) Camshaft Sprocket Alignment Plate. OEM-Ford: 303-1097. OEM-Volvo: 999-7429.
• G.) Crankshaft Pulley Alignment Plate.  OEM-Ford: 303-1550. OEM-Volvo: 999-7431.
• H.) Crankshaft Pulley Alignment Plate.  OEM-Mazda: 205-072.
• I.)  Crankshaft Pulley Alignment Tool.    OEM-Volvo: 999-7415.

• Application (Model):---
  Ford: Fiesta (08-15), B-Max (12-15), C-Max (03-07), C-Max (07-10), C-Max (10-15),
  Focus (04-11), Focus (11-15), Grand CMax (10-15), Touneo Connect (13-15),
  Grand Touneo Connect (13-15), S-Max (10-15), Galaxy (10-15), Kuga (13-15),
  Transit Connect (13-15).
  Volvo: S80 (09-14), V40 (09-14), V40 Cross Country (10-14), XC60 (09-14),
  S80 (09-14), V60 (10-14), V70 (09-14), S60 (11-11).
  Mazda: Mazda 5 (CW) (10-15), Mazda 6 (GH) (10-13).

• Engine Code: 1.6: B4164T, B4164T2, B4164T3, HXDA, HXDB, HXJA, HXJB, IQDA,
  IQDB, IQJA, JQDA, JQDB, JQGA, JQMA, JQMB, JTDA, JTDB, JTJA, JTMA, JTWB,
  MUDA, PNDA, RVJA, SIDA, U5JA, XTDA.
  2.0: B4204T6, B4204T7, B4204T7(MZRDIDSI), MGDA, MZR 2.0 (LF), R9DA, TNBA,
  TNBB, TNWA, TPBA, TPWA, ZQDA.
