• Develop to change the cam belt on single and twin cam belt diesel engines
  found in Volvo range.
• The kit provides the locking tool required for both the timing belt change,
  and dismantling of the gear drive cam fitted to the twin cam equipped engine
  in Volvo range.

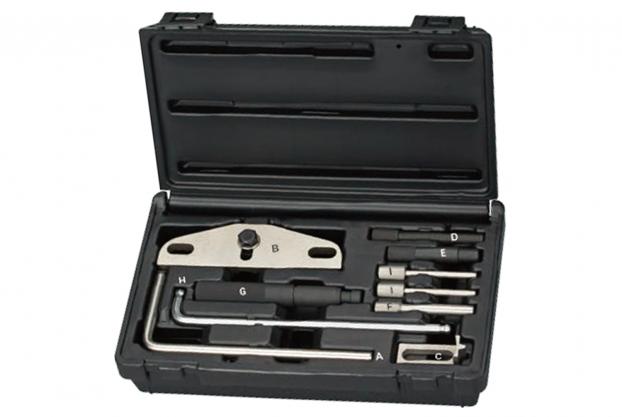

• A.) Flywheel Locking Pin. OEM: 999 7 121.
• B.) Flywheel Holding Tool Plate. OEM: 999 7 119.
        Flywheel Holding Tool Tooth/Bolt. OEM: 999 7 119.
        M8 Setscrew.
        M8 Washer.
• C.) Flywheel Holding Tool. OEM: 999 7 120.
• D.) 8 mm Locking Pin.       OEM: 999 7 169.
• E.) Camshaft Locking Pin. OEM: 999 7 007.
• F.) Camshaft Locking Pin.  OEM: 999 7 122.
• G.) Camshaft Locking Pin. OEM: 999 7 005.
• H.) 6 mm Ball End Hex Key.
• I.)  5 mm Setting Pin. OEM: 999 7 169.

• Application: Volvo C70 2.0 L + 2.4, L 5 Cylinder Engine. Engine Code: D5204T2,
  D5204T3, D5204T5, D5244T, D5244T10, D5244T11, D5244T13, D5244T14,
  D5244T15, D5244T16, D5244T17, D5244T18, D5244T19, D5244T2, D5244T3,
  D5244T4, D5244T5, D5244T6, D5244T7, D5244T8, D5244T9, D5204T. Year: 06-.
  S40 04-. S60 05-. S80 06-. V50 04-. V60 10-. V70 08-. V70 XC 01-. XC60 2.0 L+ 2.4 L,

  5 Cylinder Engine 08-, XC70 08-, XC90 02-, C30 06-: Engine Code: D5204T2,
  D5204T3, D5204T5, D5244T, D5244T10, D5244T11, D5244T13, D5244T14,
  D5244T15, D5244T16, D5244T17, D5244T18, D5244T19, D5244T2, D5244T3,
  D5244T4, D5244T5, D5244T6, D5244T7, D5244T8, D5244T9, D5204T.

  1.6 L 4 Cylinder Engine: Engine Code: D4264T, D4162T, D4164T2.
  1.9 L, 4 Cylinder Engine: Engine Code: D4192T3, D4192T4.
  2.0 L, 4 Cylinder Engine: Engine Code: D4204T, D4204T2, D4164T.
