922-5066

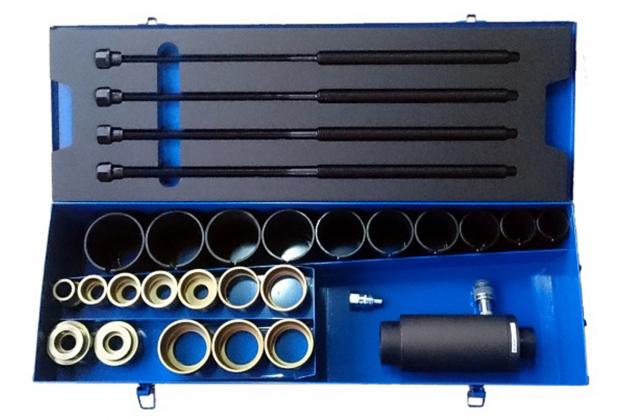

Universal Tool For Silent Blocks & Joint Bearings

• Enables safe and quick work in replacing silent blocks and joint bearings with Ø 30-75mm.
• Very tight-fitting or corroded parts can be easily removed by the 17t hydraulic cylinder.

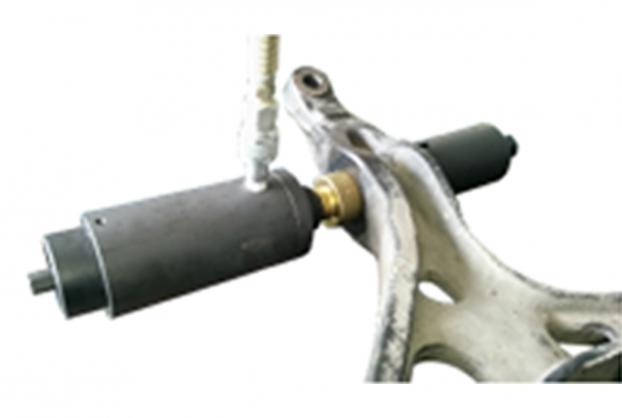

• Can be used to replace the ball joints with an additional press frame.
• Vital and basic tool set for chassis repair.

• Contents: 2 adapters;
  570mm long M10 spindle with nut;  570mm long M12 spindle with nut;
  570mm long M14 spindle with nut;  570mm long M16 spindle with nut;
  Press sleeve short:---
  Ø 30mm; Ø 40mm; Ø 46mm; Ø 50mm; Ø 54mm; Ø 58mm; Ø 64mm;
  Ø 66mm; Ø 70mm; Ø 72mm.
  Press sleeve long:---
  Ø 44mm; Ø 50mm; Ø 56mm; Ø 62mm; Ø 66mm; Ø 70mm; Ø 74mm;
  Ø 78mm; Ø 82mm; Ø 84mm.

• Enables safe and quick work in replacing silent blocks and joint bearings with Ø 30-75mm.
• Very tight-fitting or corroded parts can be easily removed by the 17t hydraulic cylinder.
• Can be used to replace the ball joints with an additional press frame.
• Vital and basic tool set for chassis repair.

• Contents: 2 adapters;
  570mm long M10 spindle with nut;  570mm long M12 spindle with nut;
  570mm long M14 spindle with nut;  570mm long M16 spindle with nut;
  Press sleeve short:---
  Ø 30mm; Ø 40mm; Ø 46mm; Ø 50mm; Ø 54mm; Ø 58mm; Ø 64mm;
  Ø 66mm; Ø 70mm; Ø 72mm.
  Press sleeve long:---
  Ø 44mm; Ø 50mm; Ø 56mm; Ø 62mm; Ø 66mm; Ø 70mm; Ø 74mm;
  Ø 78mm; Ø 82mm; Ø 84mm.
