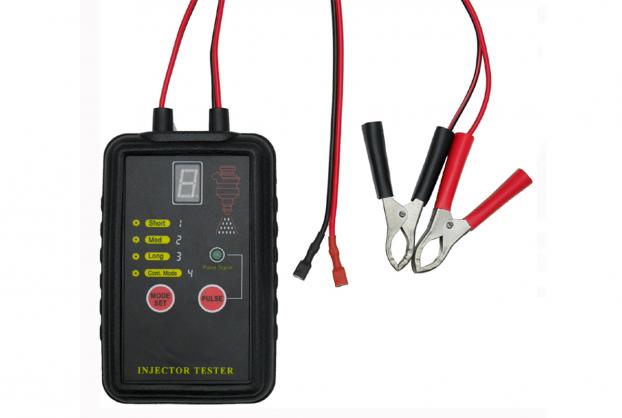

• By connecting with the 12V vehicle battery, the tester generates four different
  output signal pulses for user to check the condition of the injector.
• By using the tester, user can check if the injector is clogged, leaking or blasting.
• Input Power: 12V Vehicle Battery.
• Working Environment:   0 ~ 40°C (32 ~ 104°F); < 80%RH.
• Storage Environment: -10 ~ 50°C (14 ~ 122°F); < 85%RH.
• (1) Switch off the engine, then connect the black battery clip to the negative
        of the car battery and the red battery clip to the positive of the car battery.
• (2) Disconnect the injector with connector from the vehicle; then connect the
        Output Signal Connector with the injector.
• (3) Press Mode Setting Switch to select the output signal pulse mode; there
        are 4 modes of the pulse:
        Mode 1: Press PULSE switch to generate 1 pulse; the width of the pulse is 250ms.
        Mode 2: Press PULSE switch to generate 50 pulses; the width of the pulse is 8ms.
        Mode 3: Press PULSE switch to generate 100 pulses; the width of the pulse is 4ms.
        Mode 4: Press PULSE switch to generate 50 pulse every 1500ms continuously; the
                      width of pulse is 8ms. Press PULSE switch again will stop the signal.
• (4) After selecting the pulse mode, press the switch PULSE to generate the pulse.
        The Pulse Indicator will light up as the signal is generating.

• By connecting with the 12V vehicle battery, the tester generates four different
  output signal pulses for user to check the condition of the injector.
• By using the tester, user can check if the injector is clogged, leaking or blasting.
• Input Power: 12V Vehicle Battery.
• Working Environment:   0 ~ 40°C (32 ~ 104°F); < 80%RH.
• Storage Environment: -10 ~ 50°C (14 ~ 122°F); < 85%RH.
• (1) Switch off the engine, then connect the black battery clip to the negative
        of the car battery and the red battery clip to the positive of the car battery.
• (2) Disconnect the injector with connector from the vehicle; then connect the
        Output Signal Connector with the injector.
• (3) Press Mode Setting Switch to select the output signal pulse mode; there
        are 4 modes of the pulse:
        Mode 1: Press PULSE switch to generate 1 pulse; the width of the pulse is 250ms.
        Mode 2: Press PULSE switch to generate 50 pulses; the width of the pulse is 8ms.
        Mode 3: Press PULSE switch to generate 100 pulses; the width of the pulse is 4ms.
        Mode 4: Press PULSE switch to generate 50 pulse every 1500ms continuously; the
                      width of pulse is 8ms. Press PULSE switch again will stop the signal.
• (4) After selecting the pulse mode, press the switch PULSE to generate the pulse.
        The Pulse Indicator will light up as the signal is generating.
