Battery & Electric System
113-5227

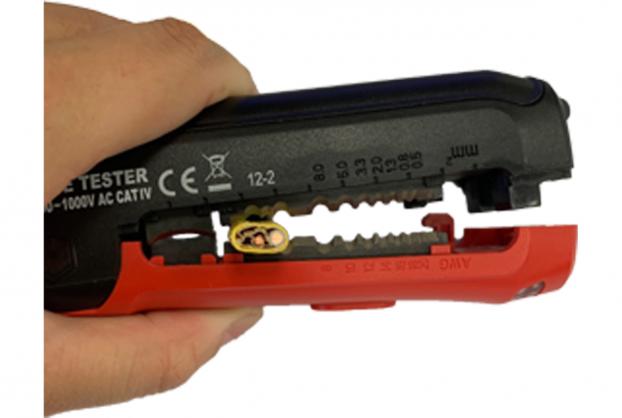

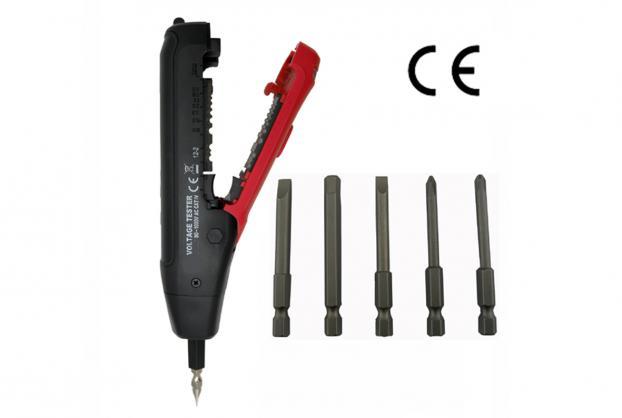

• This product combines most required tools for an electrician to do the wiring job
within the building, which includes screwdriver, non-contact voltage detector,
illumination and wire stripper for most type wires.
• With CE Approval. Illumination Screwdriver. Wire Stripper. Magnet Function.
• Sound and Light Indication. Non Contact Voltage Detection.
• VOLTAGE DETECTION > 80V AC
• POWER SOURCE 3V (AAA 1.5V x 2)
• WORKING ENVIRONMENT 0-50°C (32-122°F), <85%RH
• STORAGE ENVIRONMENT -20-60°C (-4-140°F), <90%RH
• CAT CATEGORY CAT IV 1000V
• CAUTION: If there is no voltage been detected within 3 minutes, the function will
automatically power off.
• NON CONTACT VOLTAGE DETECTION: Please press Non-contact voltage switch
to activate the function, the buzzer will beep and sensor indication will light up.
When the sensor is near the voltage source which is higher than 80V AC, the
buzzer will buzz and indication light will flash. Pressing the Non-contact voltage
switch again will deactivate the function, the sensor indication will turn off.
• ILLUMINATION: Press the Illumination switch to activate the function.
Press the Illumination switch again will deactivate the function.
• This product combines most required tools for an electrician to do the wiring job
within the building, which includes screwdriver, non-contact voltage detector,
illumination and wire stripper for most type wires.
• With CE Approval. Illumination Screwdriver. Wire Stripper. Magnet Function.
• Sound and Light Indication. Non Contact Voltage Detection.
• VOLTAGE DETECTION > 80V AC
• POWER SOURCE 3V (AAA 1.5V x 2)
• WORKING ENVIRONMENT 0-50°C (32-122°F), <85%RH
• STORAGE ENVIRONMENT -20-60°C (-4-140°F), <90%RH
• CAT CATEGORY CAT IV 1000V
• CAUTION: If there is no voltage been detected within 3 minutes, the function will
automatically power off.
• NON CONTACT VOLTAGE DETECTION: Please press Non-contact voltage switch
to activate the function, the buzzer will beep and sensor indication will light up.
When the sensor is near the voltage source which is higher than 80V AC, the
buzzer will buzz and indication light will flash. Pressing the Non-contact voltage
switch again will deactivate the function, the sensor indication will turn off.
• ILLUMINATION: Press the Illumination switch to activate the function.
Press the Illumination switch again will deactivate the function.
