Battery & Electric System
113-7122

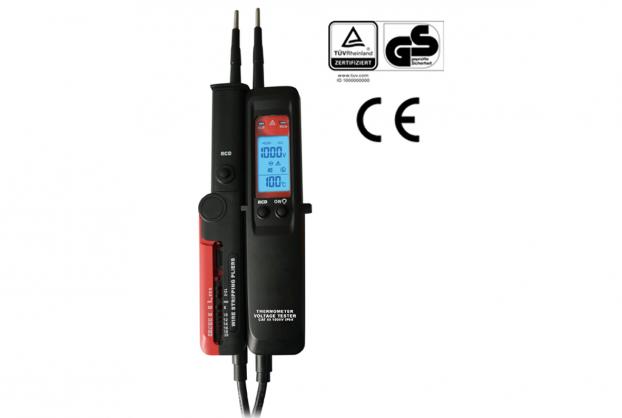

• The product can measure AC voltage 10V to 1000V and DC voltage 7V to 1000V
with polarity indication. Illumination.

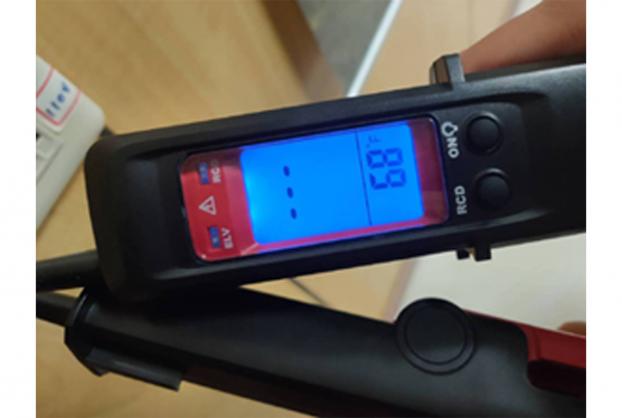

• All testing results will be displayed by LCD. Wire cutting and stripping.
• Temperature measurement. LCD display. Auto power off.
• This product can also measure continuity, RCD and temperature from
0°C to 150°C (32°F to 302°F).
• RCD test. Continuity test.
• Eventually, for the convenience of wire stripping and cutting, this product
has combined the function of wire stripper.
• 3 phase voltage rotation indication.
• Voltage measurement and polarity indication.
• Low power indication.
• Three Phase Rotation Indication: 90-400V AC, 50/60Hz.
• Measuring Current: <3.5mA (AC/DC).
• VOLTAGE RANGE: 7-1000V DC. 10-1000V AC (≦400Hz). RESOLUTION: 1V.
• ACCURACY: ±(3%+3)V or ±5V. RECOVERY TIME: 60s.
• HIGH VOLTAGE INDICATION: >50V AC/DC.
• RCD TEST: VOLTAGE 100-250V, CURRENT ≦40mA, TIME SPACE 60s,
• TEMPERATURE MEASUREMENT: RANGE 0-150°C 32-302°F, RESOLUTION 1°C / 1°F,
ACCURACY ±3°C / ±37°F, HIGH TEMPERATURE INDICATION >60°C / >140°F.
• MAXIMUM RESOLUTION: 1000, 3 1/2 digits,
• CONTINUITY ≦500KΩ, BATTERY 3V (AAA 1.5V x 2).
• WORKING ENVIRONMENT: 0°C ~ 50°C (32°F ~ 122°F); <85%RH.
• STORAGE ENVIRONMENT: -20°C ~ 60°C (-4°F ~ 140°F); <85%RH.
