New Products

113-7123

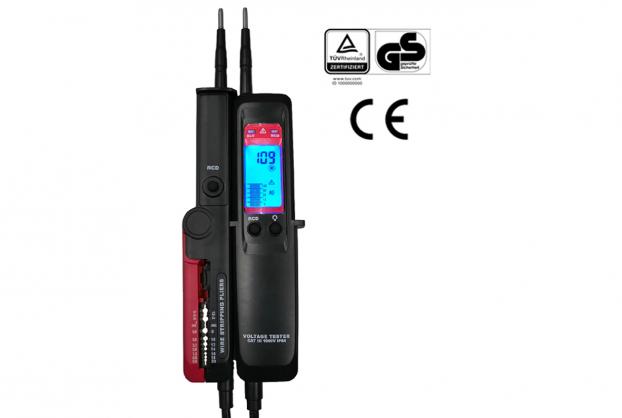

Voltage Tester With Wire Stripper

• The product can measure AC voltage 10V to 1000V and DC voltage
  7V to 1000V with polarity indication.
• All testing results will be displayed by LCD.
• This product can also measure continuity and RCD.
• Eventually, for the convenience of wire stripping and cutting, this product
  has combined the function of wire stripper.
• RCD test. LCD display. Illumination. Continuity test. Auto power off.
• Low power indication. Wire cutting and stripping.
• 3 phase voltage rotation indication.
• Voltage measurement and polarity indication.
• VOLTAGE RANGE: 7-1000V DC, 10-1000V AC (400Hz).
• RESOLUTION: 1V. ACCURACY: ±(3%+3)V or ±5V.
• RECOVERY TIME: 60s. HIGH VOLTAGE INDICATION: >50V AC/DC.
• THREE PHASE ROTATION INDICATION: 90-400V AC, 50/60Hz.
• MEASURING CURRENT: <3.5mA (AC/DC).
• RCD TEST: VOLTAGE: 100-250V. CURRENT: 40mA. TIME SPACE: 60s.
• DISPLAY LCD. MAXIMUM RESOLUTION: 1000, 3 1/2 digits.
• CONTINUITY: ≦500KΩ. BATTERY: 3V (AAA 1.5V x 2).
• WORKING ENVIRONMENT: 0°C ~ 50°C (32°F ~ 122°F); <85%RH
• STORAGE ENVIRONMENT: -20°C ~ 60°C (-4°F ~ 140°F); <85%RH

• The product can measure AC voltage 10V to 1000V and DC voltage
  7V to 1000V with polarity indication.
• All testing results will be displayed by LCD.
• This product can also measure continuity and RCD.
• Eventually, for the convenience of wire stripping and cutting, this product
  has combined the function of wire stripper.
• RCD test. LCD display. Illumination. Continuity test. Auto power off.
• Low power indication. Wire cutting and stripping.
• 3 phase voltage rotation indication.
• Voltage measurement and polarity indication.
• VOLTAGE RANGE: 7-1000V DC, 10-1000V AC (400Hz).
• RESOLUTION: 1V. ACCURACY: ±(3%+3)V or ±5V.
• RECOVERY TIME: 60s. HIGH VOLTAGE INDICATION: >50V AC/DC.
• THREE PHASE ROTATION INDICATION: 90-400V AC, 50/60Hz.
• MEASURING CURRENT: <3.5mA (AC/DC).
• RCD TEST: VOLTAGE: 100-250V. CURRENT: 40mA. TIME SPACE: 60s.
• DISPLAY LCD. MAXIMUM RESOLUTION: 1000, 3 1/2 digits.
• CONTINUITY: ≦500KΩ. BATTERY: 3V (AAA 1.5V x 2).
• WORKING ENVIRONMENT: 0°C ~ 50°C (32°F ~ 122°F); <85%RH
• STORAGE ENVIRONMENT: -20°C ~ 60°C (-4°F ~ 140°F); <85%RH
