113-1945

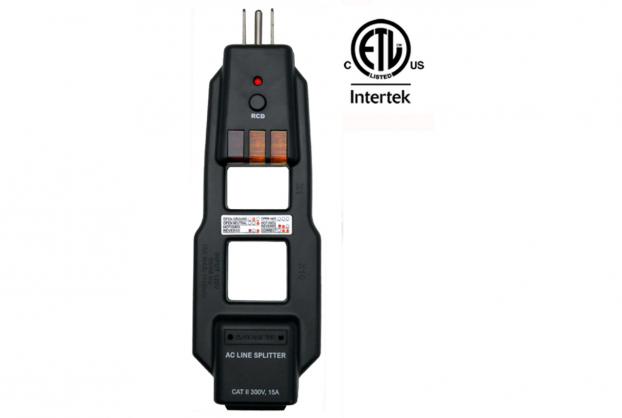

AC Line Splitter

• The AC line splitter is a helpful testing device for electrician.

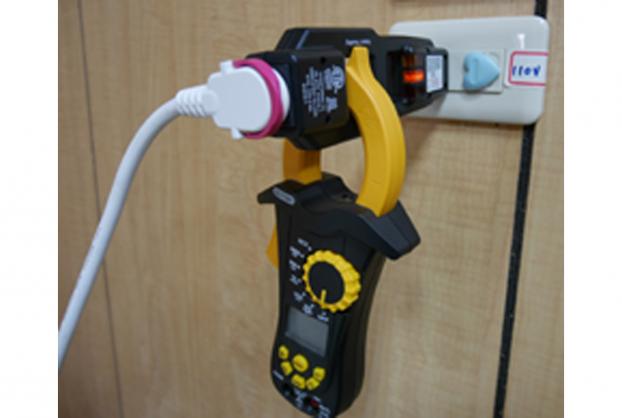

• Electrician can measure the current with clamp meter through the X1 and
  X10 measuring rings. X1 is 1:1 measurement, and X10 is ten times (1:10)
  of the actual current, which is helpful for small current measurement.
• This device also combines the function of socket tester and GFCI tester, which
  means electrician can use this tester to test socket and load at the same time.
• Detect faulty wiring in 3 wire receptacle.
• Test for GFCI receptacle for proper operation, 110-125V circuits.
• Measure the current with clamp meter through the X1 and X10. Patented.
• Various combinations of three lights tell if wiring is correct or six possible faulty conditions.
• INPUT VOLTAGE: 120V ± 10%.
• OPERATING TEMPERATURE: 5-40°C (41-104°F).
• STORAGE TEMPERATURE: -20-60°C (-4-140°F).
• STORAGE HUMIDITY: <80% ALTITUDE <2000m (7000ft).
• SAFETY CATEGORY: CAT II 300V.
• Operating Humidity: Max 80% with temperature up to 30°C (86°F);
  linearly decreasing to 50% at temperature 40°C (104°F).


• The AC line splitter is a helpful testing device for electrician.
• Electrician can measure the current with clamp meter through the X1 and
  X10 measuring rings. X1 is 1:1 measurement, and X10 is ten times (1:10)
  of the actual current, which is helpful for small current measurement.
• This device also combines the function of socket tester and GFCI tester, which
  means electrician can use this tester to test socket and load at the same time.
• Detect faulty wiring in 3 wire receptacle.
• Test for GFCI receptacle for proper operation, 110-125V circuits.
• Measure the current with clamp meter through the X1 and X10. Patented.
• Various combinations of three lights tell if wiring is correct or six possible faulty conditions.
• INPUT VOLTAGE: 120V ± 10%.
• OPERATING TEMPERATURE: 5-40°C (41-104°F).
• STORAGE TEMPERATURE: -20-60°C (-4-140°F).
• STORAGE HUMIDITY: <80% ALTITUDE <2000m (7000ft).
• SAFETY CATEGORY: CAT II 300V.
• Operating Humidity: Max 80% with temperature up to 30°C (86°F);
  linearly decreasing to 50% at temperature 40°C (104°F).
