Battery & Electric System

113-7116

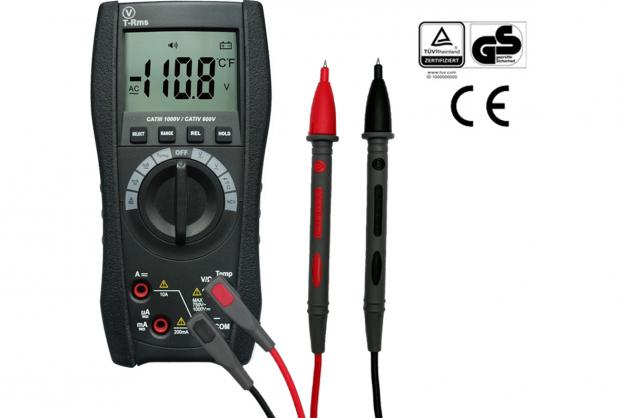

Basic Multimeter

• This is a low power consumption, high accuracy and stable hand held
  3-1/2 digits (2000 counts) multi-meter; with special designed IC to support
  true RMS measurement.
• It performs measurements of DC voltage/current, true RMS AC voltage/current,
  resistance, diode, continuity, temperature and non-contact voltage sensing.
• DC/AC Voltage Measurement.
• DC/AC Current Measurement.
• Resistance Measurement.
• Diode/Continuity Measurement.
• Temperature Measurement.

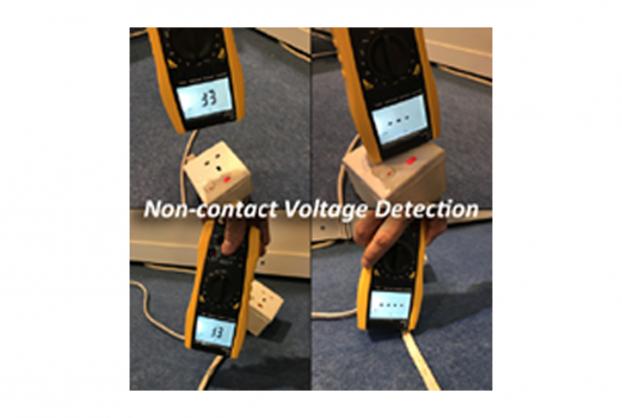

• Non-contact Voltage Sensing.
• Auto Power-off. Back-light and illumination.
• With accessories of thermocouple(optional) and K-type connector(optional)
  for temperature measurement.
• DISPLAY: LCD.
• MAXIMUM RESOLUTION: 2000, 3 1/2 digits.
• RANGE: Auto / Manual.
• DATA REFRESH RATE: 3 times / sec.
• LOW POWER INDICATION: Yes.
• WORKING TEMPERATURE: 0-50°C 32-122°F.
• STORAGE TEMPERATURE: -10-60°C 14-140°F.
• POWER 9V 6F22 Battery.
• RATING AC: 0-750V / 0-10A. DC: 0-1000V / 0-10A Ω: 0-19.99M.
• TEM: -200-1300°C. HUMIDITY < 80%RH.
• CAT CATEGORY CAT IV 600V CAT III 1000V.


• This is a low power consumption, high accuracy and stable hand held
  3-1/2 digits (2000 counts) multi-meter; with special designed IC to support
  true RMS measurement.
• It performs measurements of DC voltage/current, true RMS AC voltage/current,
  resistance, diode, continuity, temperature and non-contact voltage sensing.
• DC/AC Voltage Measurement.
• DC/AC Current Measurement.
• Resistance Measurement.
• Diode/Continuity Measurement.
• Temperature Measurement.
• Non-contact Voltage Sensing.
• Auto Power-off. Back-light and illumination.
• With accessories of thermocouple(optional) and K-type connector(optional)
  for temperature measurement.
• DISPLAY: LCD.
• MAXIMUM RESOLUTION: 2000, 3 1/2 digits.
• RANGE: Auto / Manual.
• DATA REFRESH RATE: 3 times / sec.
• LOW POWER INDICATION: Yes.
• WORKING TEMPERATURE: 0-50°C 32-122°F.
• STORAGE TEMPERATURE: -10-60°C 14-140°F.
• POWER 9V 6F22 Battery.
• RATING AC: 0-750V / 0-10A. DC: 0-1000V / 0-10A Ω: 0-19.99M.
• TEM: -200-1300°C. HUMIDITY < 80%RH.
• CAT CATEGORY CAT IV 600V CAT III 1000V.
