113-7117

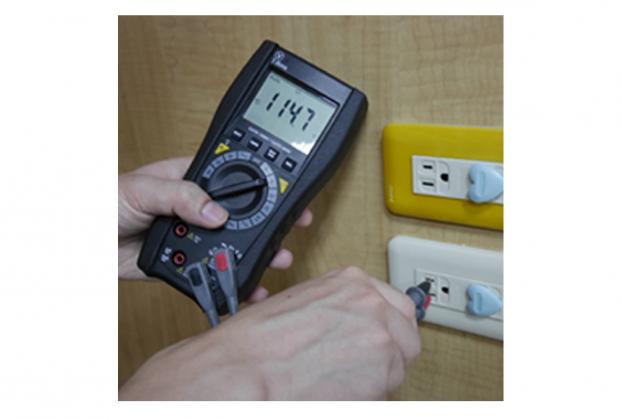

Advanced Multimeter

• This is a low power consumption, high accuracy and stable hand
  held 3 6/7 digits (6000 counts) multi-meter; with special designed
  IC to support true RMS measurement.
• Back-light and illumination.
• It performs measurements of DC voltage/current, true RMS AC
  voltage/current, resistance, capacitance, frequency, diode,
  continuity, temperature and non-contact voltage sensing.
• DC/AC Voltage Measurement.
• DC/AC Current Measurement.
• Resistance Measurement.
• Diode/Continuity Measurement.
• Capacitance Measurement.
• Non-contact Voltage Sensing.
• With accessories of thermocouple and K-type connector for temperature measurement.

• DISPLAY: LCD.
• MAXIMUM RESOLUTION: 6000, 3 6/7 digits.
• RANGE: Auto / Manual.
• DATA REFRESH RATE: 3 times / sec.
• LOW POWER INDICATION: Yes.
• WORKING TEMPERATURE: 0-50°C  32-122°F.
• STORAGE TEMPERATURE: -10-60°C  14-140°F.
• POWER: 9V 6F22 Battery.
• RATING AC: 0-750V / 0-10A. DC: 0-1000V / 0-10A Ω: 0-60M.
• TEM: -200-1300°C.
• CAP: 0-9.999mF.
• Hz: 0-9.999MHz.
• HUMIDITY < 80%RH.
• CAT CATEGORY CAT IV 600V.
• CAT III 1000V. Auto Power-off.

• This is a low power consumption, high accuracy and stable hand
  held 3 6/7 digits (6000 counts) multi-meter; with special designed
  IC to support true RMS measurement.
• Back-light and illumination.
• It performs measurements of DC voltage/current, true RMS AC
  voltage/current, resistance, capacitance, frequency, diode,
  continuity, temperature and non-contact voltage sensing.
• DC/AC Voltage Measurement.
• DC/AC Current Measurement.
• Resistance Measurement.
• Diode/Continuity Measurement.
• Capacitance Measurement.
• Non-contact Voltage Sensing.
• With accessories of thermocouple and K-type connector for temperature measurement.

• DISPLAY: LCD.
• MAXIMUM RESOLUTION: 6000, 3 6/7 digits.
• RANGE: Auto / Manual.
• DATA REFRESH RATE: 3 times / sec.
• LOW POWER INDICATION: Yes.
• WORKING TEMPERATURE: 0-50°C  32-122°F.
• STORAGE TEMPERATURE: -10-60°C  14-140°F.
• POWER: 9V 6F22 Battery.
• RATING AC: 0-750V / 0-10A. DC: 0-1000V / 0-10A Ω: 0-60M.
• TEM: -200-1300°C.
• CAP: 0-9.999mF.
• Hz: 0-9.999MHz.
• HUMIDITY < 80%RH.
• CAT CATEGORY CAT IV 600V.
• CAT III 1000V. Auto Power-off.
