113-7630

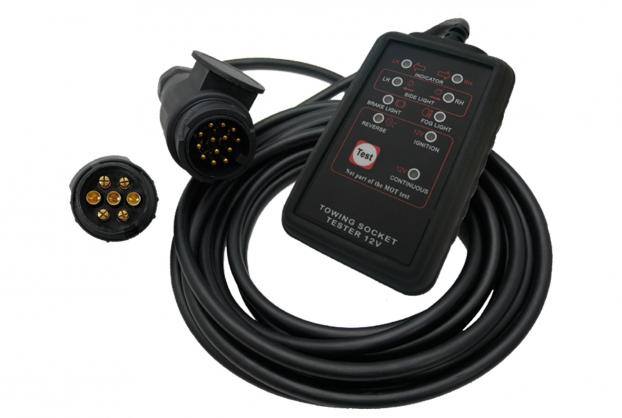

13 Pin Towing Socket Tester

• The tester is to connect with the 12V 13-pin Euro-type socket.
• It can also connect with 7 pin socket through a 13-7 pin towing adaptor.
• It works for MOT testing of class 4, 5, and 7.
• The cable is 5m long enough for user to do the test while sitting in the vehicle.
• The tester can also do self-test (not work for 7 pin socket), 12V power check,
  ignition and reversing light.
• CAUTION: The self-test is not available with 13-7 pin towing adapter because
                    there is no continuous feed via the 7-pin socket.
                    Connect the tester with the vehicle's  towing socket.
• Take care to line up the male and female socket.
• Twist the out plug ring clockwise to lock the plug.
• If the 12V power line of the socket is working correctly, the 12V CONTINUOUS
  indication will light up.
• Press the Test to check the tester circuit and LED indication.
• Turn the ignition to ON position, do not start the vehicle's engine.
• The 12V IGNITION indication shall light up.
• For MOT test, please do in turns: 1. Switch on left and right hand light.
                                                        2. Switch on the side light.
                                                        3. Switch on the fog light.
                                                        4. Depress the foot brake pedal.
• User can also check the reverse light by REVERSE indication.
• To remove the tester after the test, please twist the out plug ring anti-clockwise
  to unlock the plug.

• The tester is to connect with the 12V 13-pin Euro-type socket.
• It can also connect with 7 pin socket through a 13-7 pin towing adaptor.
• It works for MOT testing of class 4, 5, and 7.
• The cable is 5m long enough for user to do the test while sitting in the vehicle.
• The tester can also do self-test (not work for 7 pin socket), 12V power check,
  ignition and reversing light.
• CAUTION: The self-test is not available with 13-7 pin towing adapter because
                    there is no continuous feed via the 7-pin socket.
                    Connect the tester with the vehicle's  towing socket.
• Take care to line up the male and female socket.
• Twist the out plug ring clockwise to lock the plug.
• If the 12V power line of the socket is working correctly, the 12V CONTINUOUS
  indication will light up.
• Press the Test to check the tester circuit and LED indication.
• Turn the ignition to ON position, do not start the vehicle's engine.
• The 12V IGNITION indication shall light up.
• For MOT test, please do in turns: 1. Switch on left and right hand light.
                                                        2. Switch on the side light.
                                                        3. Switch on the fog light.
                                                        4. Depress the foot brake pedal.
• User can also check the reverse light by REVERSE indication.
• To remove the tester after the test, please twist the out plug ring anti-clockwise
  to unlock the plug.
