113-7127

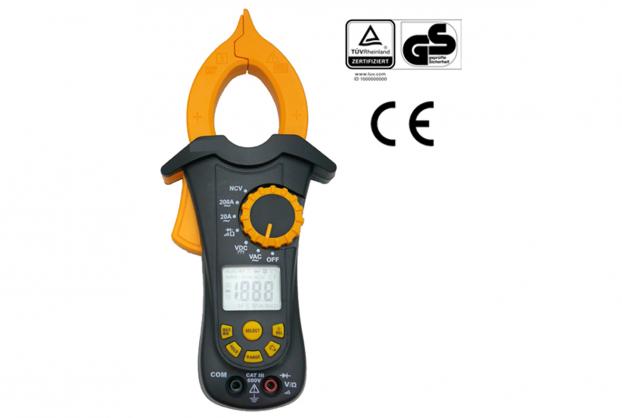

200A Digital Clamp Meter

• This is a auto-ranging, high accuracy and stable hand held clamp meter
  to make electrical maintenance safe and easy.
• With special designed IC to support true RMS, the meter is available to
  measure AC/DC voltage to 600V, AC current to 200A and resistance to
  20MΩ; also having the capability to test diode, continuity and non contact
  voltage sensing.
• Sub switch included Function Select, Max-Min Indication, Value Hold,
  Range Select, Relative Value Measurement, Illumination and Back-light.
• AC/DC Voltage Measurement.
• AC Current Measurement.
• Resistance Measurement.
• Diode Measurement.
• Continuity Measurement.
• Non-contact Voltage Sensing.
• Diode and Continuity: Display, Diode forward voltage 0~3V, Buzzer is buzzing,
  resistance is <50 ohm .
• Back-light and illumination.
• AAA battery x 4.
• DC Voltage Range: 0~600V DC.
• AC Voltage Range: 0~600V AC.
• AC Current Range: 0~200A.
• Resistance Range: 0~20MΩ.


• This is a auto-ranging, high accuracy and stable hand held clamp meter
  to make electrical maintenance safe and easy.
• With special designed IC to support true RMS, the meter is available to
  measure AC/DC voltage to 600V, AC current to 200A and resistance to
  20MΩ; also having the capability to test diode, continuity and non contact
  voltage sensing.
• Sub switch included Function Select, Max-Min Indication, Value Hold,
  Range Select, Relative Value Measurement, Illumination and Back-light.
• AC/DC Voltage Measurement.
• AC Current Measurement.
• Resistance Measurement.
• Diode Measurement.
• Continuity Measurement.
• Non-contact Voltage Sensing.
• Diode and Continuity: Display, Diode forward voltage 0~3V, Buzzer is buzzing,
  resistance is <50 ohm .
• Back-light and illumination.
• AAA battery x 4.
• DC Voltage Range: 0~600V DC.
• AC Voltage Range: 0~600V AC.
• AC Current Range: 0~200A.
• Resistance Range: 0~20MΩ.
