113-7129

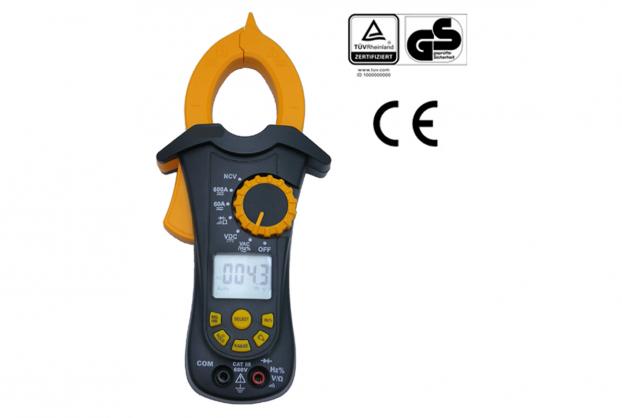

600A Digital Clamp Meter

• This is an auto-ranging, high accuracy and stable hand held clamp meter
  to make electrical maintenance safe and easy.
• With special designed IC to support true RMS, the meter is available to
  measure AC/DC voltage to 600V, AC/DC current to 600A and resistance
  to 60MΩ; also having capability to test diode, continuity, frequency and
  non contact voltage sensing.
• Sub switch included Function Select, Value Hold, Range Select,
  Relative Value Measurement, Inrush Current Indication, Hz/Duty Cycle,
  Illumination and Back-light.
• AC/DC Voltage Measurement.
• AC/DC Current Measurement.
• Resistance Measurement.
• Diode Measurement.
• Continuity Measurement.
• Non-contact Voltage Sensing.

• Diode and Continuity: Display.
• Diode forward voltage 0~3V.
• Buzzer is buzzing, resistance is<50 ohm.
• Frequency (Hz/duty cycle) Measurement.
• Back-light and illumination. AAA battery x 4.
• DC Voltage Range 0~600V DC.
• AC Voltage Range 0~600V AC.
• AC Current Range 0~600A.
• Resistance Range 0~60MΩ.



• This is an auto-ranging, high accuracy and stable hand held clamp meter
  to make electrical maintenance safe and easy.
• With special designed IC to support true RMS, the meter is available to
  measure AC/DC voltage to 600V, AC/DC current to 600A and resistance
  to 60MΩ; also having capability to test diode, continuity, frequency and
  non contact voltage sensing.
• Sub switch included Function Select, Value Hold, Range Select,
  Relative Value Measurement, Inrush Current Indication, Hz/Duty Cycle,
  Illumination and Back-light.
• AC/DC Voltage Measurement.
• AC/DC Current Measurement.
• Resistance Measurement.
• Diode Measurement.
• Continuity Measurement.
• Non-contact Voltage Sensing.

• Diode and Continuity: Display.
• Diode forward voltage 0~3V.
• Buzzer is buzzing, resistance is<50 ohm.
• Frequency (Hz/duty cycle) Measurement.
• Back-light and illumination. AAA battery x 4.
• DC Voltage Range 0~600V DC.
• AC Voltage Range 0~600V AC.
• AC Current Range 0~600A.
• Resistance Range 0~60MΩ.
