113-7650

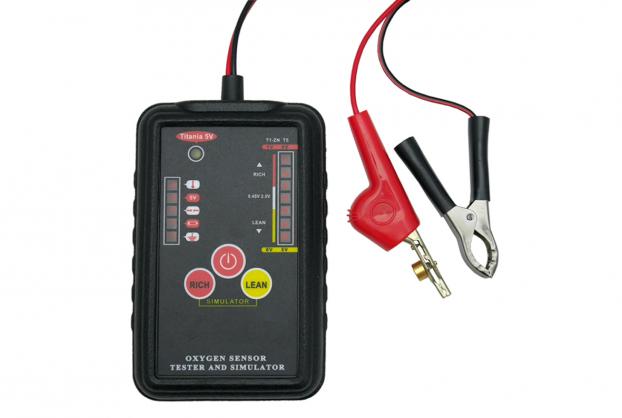

Oxygen Sensor Tester & Simulator

• This device is designed to test and to simulate 1V Zirconia and 1V/5V
  Titania type oxygen sensors.
• The simulation can help user to exam the function of the ECU. Moreover,
  it can analyze the type of connection wire.
• Connection wires analysis (ground, open, heater, ECU power).
• Check the ECU response to the sensor by simulating rich/lean signals.
• LED indication of oxygen sensor signal switching and low power indication.
• With wire piercing clip (easy for connection), 5 minutes auto power off,
  proper sealed control panel, high strength housing.

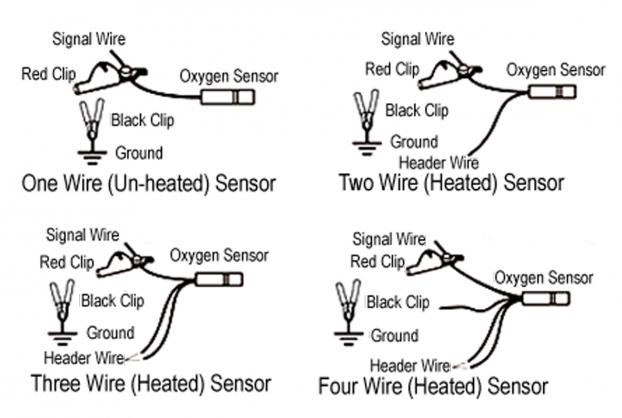

• Testing 1 ~ 4 wires (with/without heater) oxygen sensor (1V Zirconia, 1V/5V Titania).


• This device is designed to test and to simulate 1V Zirconia and 1V/5V
  Titania type oxygen sensors.
• The simulation can help user to exam the function of the ECU. Moreover,
  it can analyze the type of connection wire.
• Connection wires analysis (ground, open, heater, ECU power).
• Check the ECU response to the sensor by simulating rich/lean signals.
• LED indication of oxygen sensor signal switching and low power indication.
• With wire piercing clip (easy for connection), 5 minutes auto power off,
  proper sealed control panel, high strength housing.
• Testing 1 ~ 4 wires (with/without heater) oxygen sensor (1V Zirconia, 1V/5V Titania).
