113-6575

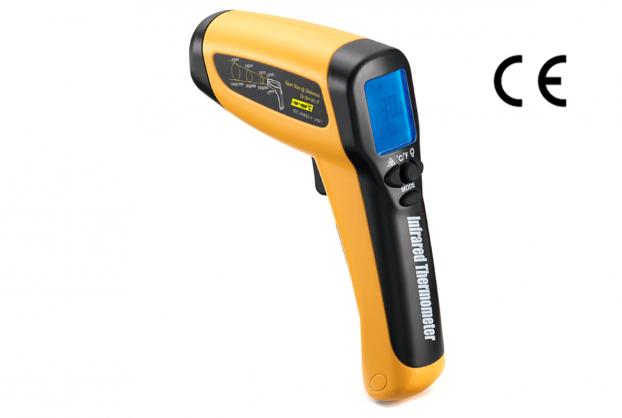

• Infrared Thermometer is designed to measure surface temperature where as traditional
contact type thermometer is inappropriate.
• For example, measurement of moving object, items with live voltage and items not reachable.
• Low Battery indicator.
• Distance to spot ratio is 30:1.
• Laser Indicator and Back-light.
• Changeable between °C and °F.
• Emissivity Range: 0.1-1.00.
• Temperature range: -50-800°C (-58-1472°F).
• TEMPERATURE: RANGE -50-800°C.
OPERATION 0-50°C. STORAGE -20-50°C.
• HUMIDITY: RELATIVE 10-95% RH not condensing.
• MEASUREMENT PARAMETER:
RESOLUTION: 0.1°C / 0.1°F.
ACCURACY: ±2.5% or ±3°C.
RESPONSE TIME: 0.8 second.
DISTANCE TO SPOT RATIO: 30:1
POWER SUPPLY: One 9V battery
LASER CLASSIFICATION Output: < 1mW Class II or 2
EMISSIVITY RANGE: 0.1-1.00.
