113-4100

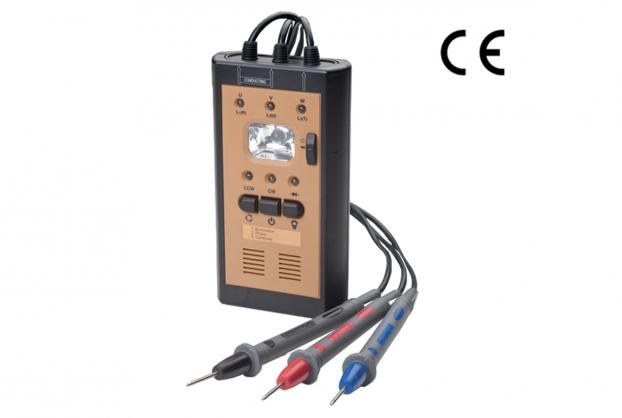

Phase And Continuity Tester

• There are two function of this tester. One is to test the continuity
  and the other one is to test the phase of three-phase system.
• The operation is easy, the indication is clear with LED indication.
• There is a loud buzzer to remind you the continuity.
• The illumination is very helpful in the dark environment.
• Continuity Resistance: 0 ~ 10KΩ
• Continuity Voltage: 9V
• Continuity Current: ≦40uA
• Line to line Voltage: 80 ~ 600V AC
• Safety Standard: CATIII 600V
• LVD Safety Conforms to EN 61010-1, EN 61010-2-030, EN 61010-031
• EMC Safety Conforms to EN61326-1

• There are two function of this tester. One is to test the continuity
  and the other one is to test the phase of three-phase system.
• The operation is easy, the indication is clear with LED indication.
• There is a loud buzzer to remind you the continuity.
• The illumination is very helpful in the dark environment.
• Continuity Resistance: 0 ~ 10KΩ
• Continuity Voltage: 9V
• Continuity Current: ≦40uA
• Line to line Voltage: 80 ~ 600V AC
• Safety Standard: CATIII 600V
• LVD Safety Conforms to EN 61010-1, EN 61010-2-030, EN 61010-031
• EMC Safety Conforms to EN61326-1
