Battery & Electric System

113-6528

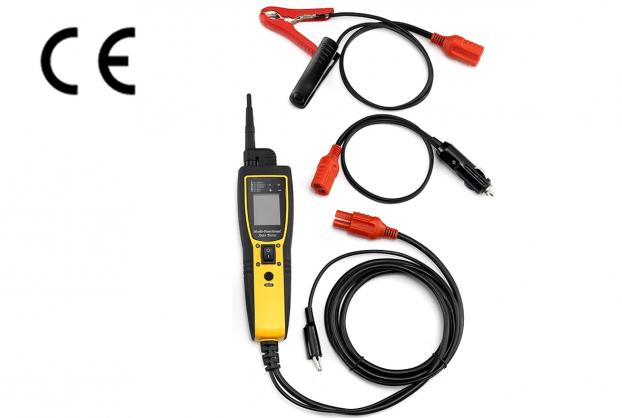

Multi Function Automobile Tester

• The multi-function automobile tester has LCD display to indicate the
  measured result.
• It has polarity detection with the LEDs for a positive and negative
  indication of DC voltage.
• For auto use, the functions included the measurement of DC voltage
  and current, signal frequency and max/min voltage, resistance,
  temperature and power providing testing.
• Resistance Measurement.
• Current Measurement.
• Power Providing Test.
• Illumination.
• Signal Frequency and Max / Min Voltage Measurement.
• DC Voltage Measurement.
• With accessories of thermocouple and for temperature measurement.

• SUPPLY VOLTAGE: 12-24V DC System.
• VOLTAGE MEASUREMENT RANGE: 0-70V.
• DC CURRENT MEASUREMENT RANGE: 0-5A DC.
• FREQUENCY MEASUREMENT RANGE: 0-300KHz (Square Wave).
• RESISTANCE MEASUREMENT RANGE: 0-200KΩ.
• WORKING TEMPERATURE: 0-50°C.
• STORAGE TEMPERATURE: -10-60°C.
• WORKING HUMIDITY: ≤ 85%.

• MEASURED TEMPERATURE RANGE: -50-500°C / -58-932°F
  (The display will appear ERROR when tester is not connected with temperature probe)
• The table indicates the maximum reading range of the tester, user has to select
  corresponding K-type thermocouple for different temperature measurement.

• The multi-function automobile tester has LCD display to indicate the
  measured result.
• It has polarity detection with the LEDs for a positive and negative
  indication of DC voltage.
• For auto use, the functions included the measurement of DC voltage
  and current, signal frequency and max/min voltage, resistance,
  temperature and power providing testing.
• Resistance Measurement.
• Current Measurement.
• Power Providing Test.
• Illumination.
• Signal Frequency and Max / Min Voltage Measurement.
• DC Voltage Measurement.
• With accessories of thermocouple and for temperature measurement.

• SUPPLY VOLTAGE: 12-24V DC System.
• VOLTAGE MEASUREMENT RANGE: 0-70V.
• DC CURRENT MEASUREMENT RANGE: 0-5A DC.
• FREQUENCY MEASUREMENT RANGE: 0-300KHz (Square Wave).
• RESISTANCE MEASUREMENT RANGE: 0-200KΩ.
• WORKING TEMPERATURE: 0-50°C.
• STORAGE TEMPERATURE: -10-60°C.
• WORKING HUMIDITY: ≤ 85%.

• MEASURED TEMPERATURE RANGE: -50-500°C / -58-932°F
  (The display will appear ERROR when tester is not connected with temperature probe)
• The table indicates the maximum reading range of the tester, user has to select
  corresponding K-type thermocouple for different temperature measurement.
