939-2327

Pneumatic Operation Dent Puller

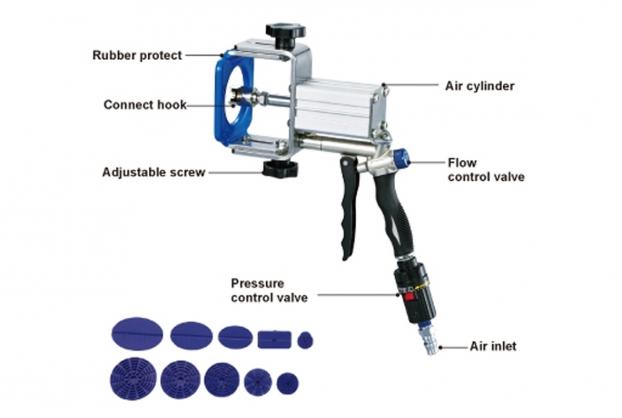

• Contents:---
  1pc Pneumatic Small Dent Damage Puller,
  10pcs Glue pads.
  1pc Extension Adapter.
  φ11.2mm x L25.4cm x 2pcs Hot Glue Sticks (just for body repair).

• Repair the small damage on the vehicle body.
• Operate more easily with pneumatic function.
• Safety devise on pressure control and flow control valves.
• With 10pcs glue pads and 1pc extension adapter.
• Stainless steel with PVC cover protection for non scratch and reliable usage.
• Air Inlet: 1/4”
• Operating pressure: 3 ~ 10Bar (0.3mMPa) (40~145psi).

• Operation Steps:

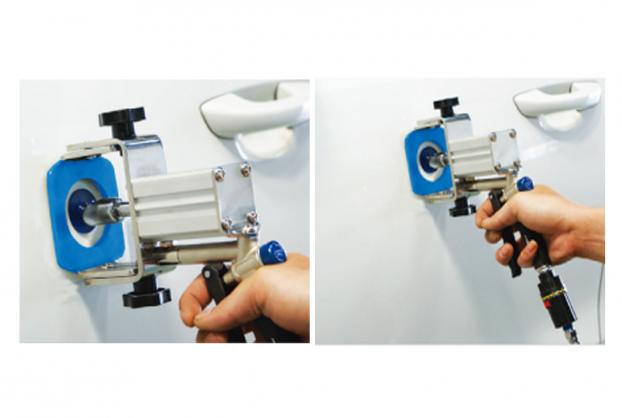

  Step 1: Choose the suitable tab, and put some hot glue on tab by hot glue gun.
  Step 2: Use heat gun to blow the hot glue of the tab to soften the hot glue.
  Step 3: Stick the tab to the small dent of the car, and use the heat gun to blow again to fix
               the tab and the small dent.
  Step 4: Wait for 5 seconds to cool the hot glue, and try to pull the tab by hand to check
               the tab and the small dent are stuck.
  Step 5: Connect the pneumatic small dent puller damage to the air compressor.
  Step 6: Adjust the pressure control valve of the puller. Then, hook the connective hook of
               the puller with the tab, and make sure They Are Hooked.
  Step 7: Adjust the two adjustable screws to make sure the height of the connective hook
               is suitable.
  Step 8: Press the trigger of the puller until the dent is recovered.
  Step 9: If it Is Necessary, rotate the puller to different angles and repeat the step 8 to
               make sure the whole dent is recovered.
  Step 10: Separate the puller and the tab, and then use the heat gun to soften the tab until
                the tab can be removed.
  Step 11: Use the heat gun to blow the glue on the dent place, and use the plastic scraper
                to scrape the Remaining glue. And the dent recovery is finished.

• Contents:---
  1pc Pneumatic Small Dent Damage Puller,
  10pcs Glue pads.
  1pc Extension Adapter.
  φ11.2mm x L25.4cm x 2pcs Hot Glue Sticks (just for body repair).

• Repair the small damage on the vehicle body.
• Operate more easily with pneumatic function.
• Safety devise on pressure control and flow control valves.
• With 10pcs glue pads and 1pc extension adapter.
• Stainless steel with PVC cover protection for non scratch and reliable usage.
• Air Inlet: 1/4”
• Operating pressure: 3 ~ 10Bar (0.3mMPa) (40~145psi).

• Operation Steps:
  Step 1: Choose the suitable tab, and put some hot glue on tab by hot glue gun.
  Step 2: Use heat gun to blow the hot glue of the tab to soften the hot glue.
  Step 3: Stick the tab to the small dent of the car, and use the heat gun to blow again to fix
               the tab and the small dent.
  Step 4: Wait for 5 seconds to cool the hot glue, and try to pull the tab by hand to check
               the tab and the small dent are stuck.
  Step 5: Connect the pneumatic small dent puller damage to the air compressor.
  Step 6: Adjust the pressure control valve of the puller. Then, hook the connective hook of
               the puller with the tab, and make sure They Are Hooked.
  Step 7: Adjust the two adjustable screws to make sure the height of the connective hook
               is suitable.
  Step 8: Press the trigger of the puller until the dent is recovered.
  Step 9: If it Is Necessary, rotate the puller to different angles and repeat the step 8 to
               make sure the whole dent is recovered.
  Step 10: Separate the puller and the tab, and then use the heat gun to soften the tab until
                the tab can be removed.
  Step 11: Use the heat gun to blow the glue on the dent place, and use the plastic scraper
                to scrape the Remaining glue. And the dent recovery is finished.
