• Special designed to time and lock the crank and balancer shaft when replacing the
  timing chain.
• BMW N47/N47S 2.0 twin camshaft diesel chain drive engines, fitted in the 1 Series,
  3 Series, 5 Series and X3.
• Applications:---
  BMW; 1 Series, 118d (E81/E82/E87/E88/F20/F21), 120d (E81/E82/E87/E88/F20/F21),
  123d (E81/E82/E87/E88). 125d(F20/F21), 3 Series, 318d (E90/E91/F30/F31/F34),
  320d (E90/E91/E92/E93/F30/F31/F34). 5 Series, 520d (E60/E61/F07/F10/F11).
  X3,1.8d, 2.0d (E83).
• Engine Codes: N47, N47S.
• OEM Ref: 118750, 118790.

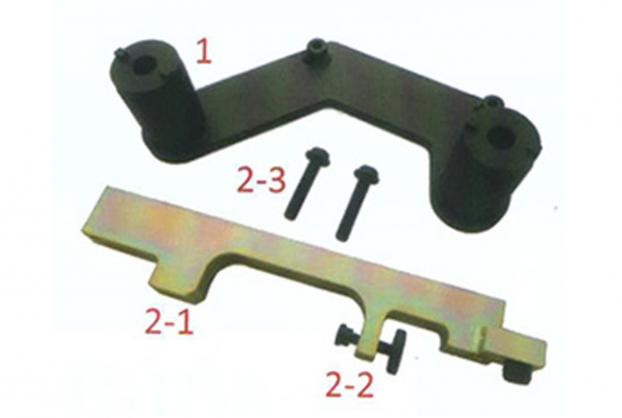

• Special tool (1) cam only be attached to the coolant pump on the special tool crankcase
  using a bolt (1).
• The crankshaft must be fixed in screw (2-2) on the TDC position of cylinder No. 1 in order to
  adjust the counterbalance shaft. Position tool (2-1) on crankcase and secure with tool (2-3).
