• Special designed to time and lock the crank and balancer shaft when replacing the
  timing chain. BMW N47/N47S 2.0 twin camshaft diesel chain drive engines, fitted in
  the 1 Series, 3 Series, 5 Series and X3.
• Applications: BMW; 1 Series, 118d (E81/E82/E87/E88/F20/F21),
  120d (E81/E82/E87/E88/F20/F21), 123d (E81/E82/E87/E88). 125d(F20/F21),
  3 Series, 318d (E90/E91/F30/F31/F34), 320d (E90/E91/E92/E93/F30/F31/F34).
  5 Series, 520d (E60/E61/F07/F10/F11). X3,1.8d, 2.0d (E83),
• Engine Codes: N47, N47S.
• OEM Ref: 118750, 118790.

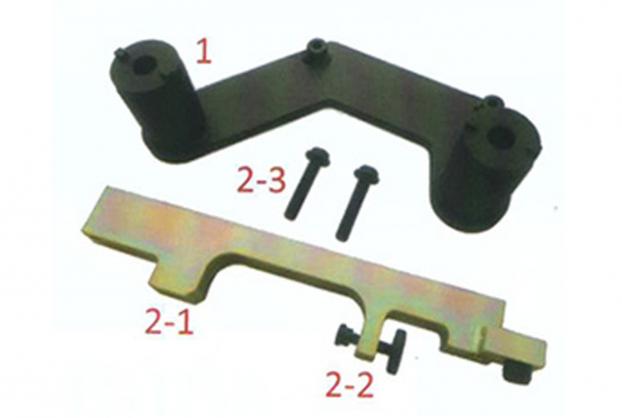

• Special tool (1) cam only be attached to the coolant pump on the special tool
  crankcase using a bolt (1).
• The crankshaft must be fixed in screw (2-2) on the TDC position of cylinder No. 1
  in order to adjust the counterbalance shaft. Position tool (2-1) on crankcase and
  secure with tool (2-3).

• Special designed to time and lock the crank and balancer shaft when replacing the
  timing chain. BMW N47/N47S 2.0 twin camshaft diesel chain drive engines, fitted in
  the 1 Series, 3 Series, 5 Series and X3.
• Applications: BMW; 1 Series, 118d (E81/E82/E87/E88/F20/F21),
  120d (E81/E82/E87/E88/F20/F21), 123d (E81/E82/E87/E88). 125d(F20/F21),
  3 Series, 318d (E90/E91/F30/F31/F34), 320d (E90/E91/E92/E93/F30/F31/F34).
  5 Series, 520d (E60/E61/F07/F10/F11). X3,1.8d, 2.0d (E83),
• Engine Codes: N47, N47S.
• OEM Ref: 118750, 118790.
• Special tool (1) cam only be attached to the coolant pump on the special tool
  crankcase using a bolt (1).
• The crankshaft must be fixed in screw (2-2) on the TDC position of cylinder No. 1
  in order to adjust the counterbalance shaft. Position tool (2-1) on crankcase and
  secure with tool (2-3).
