PRODUCTS

Hydraulic Equipment

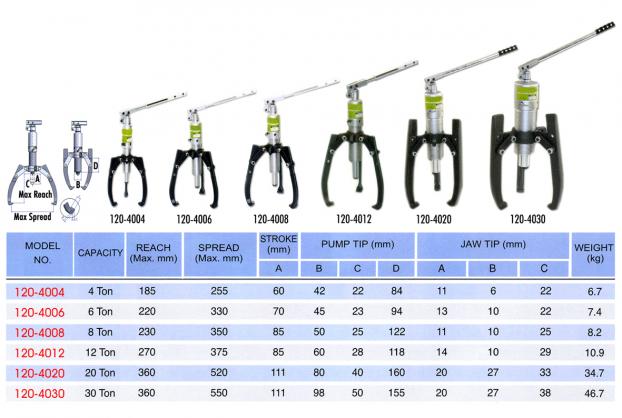

120-4030

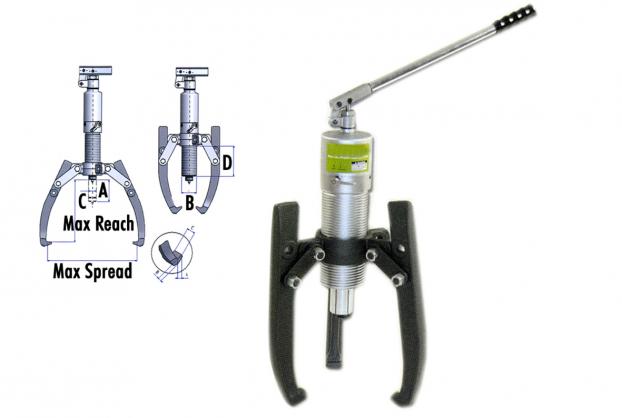

Hydraulic Pullers, Capacity: 30 Ton

•Design of two stages for 120-4020 and 120-4030, the first stage being as fast stroking for quickly connecting with object and the second stage being as high hydraulic output for pulling job.
•Long jaws and extension rods are available, allow user to extend the stroke according to the needs.
•Heat treated forged alloy steel cross bolts and jaws with manganour-phosphate plated for rust proof and long life service.
•2/3 jaws combination puller cross head with manganous-phosphate plated for rust proof and durability.
•Self-contained hydraulic pump and puller body with integral safety valve.
•Easily release valve.
•Four stages of foldable and removable handle saves the handle force during operation.
•Heat treated and chrome plated hydraulic cylinder rod provides linear force.
•Spring loaded live centering nut for easy job (removable).
•360 degree rotary socket.


•Design of two stages for 120-4020 and 120-4030, the first stage being as fast stroking for quickly connecting with object and the second stage being as high hydraulic output for pulling job.
•Long jaws and extension rods are available, allow user to extend the stroke according to the needs.
•Heat treated forged alloy steel cross bolts and jaws with manganour-phosphate plated for rust proof and long life service.
•2/3 jaws combination puller cross head with manganous-phosphate plated for rust proof and durability.
•Self-contained hydraulic pump and puller body with integral safety valve.
•Easily release valve.
•Four stages of foldable and removable handle saves the handle force during operation.
•Heat treated and chrome plated hydraulic cylinder rod provides linear force.
•Spring loaded live centering nut for easy job (removable).
•360 degree rotary socket.
